6-103080-0概述

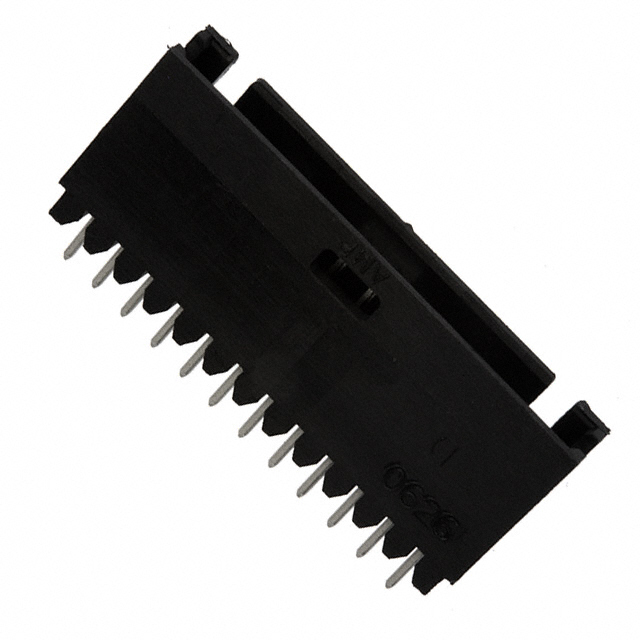

Conn Shrouded Header HDR 12POS 2.54mm Solder ST Thru-Hole Tube

针座 通孔 12 位置 0.100"(2.54mm)


得捷:
CONN HEADER VERT 12POS 2.54MM


艾睿:
Look no further than the shrouded 6-103080-0 header connector from TE Connectivity, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 12 contacts that are made out of copper alloy and plated with tin-lead over nickel. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 33.53 mm long, 13.94 mm tall and 5.76 mm deep. 6-103080-0 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C.


安富利:
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes


Verical:
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tube


MASTER:
ASSEMBLY, MOD II, SINGLE ROW, .100 C/L, 4 SIDED SHROUD


Powell:
.100 inch AMPMODU Headers


Electro Sonic:
12 MODII HDR SRST SHRD .100CL


6-103080-0中文资料参数规格
技术参数

触点数 12

极性 Male

触点电镀 Tin Lead, Tin, Tin over Nickel

额定电流 3 A

排数 1

方向 Vertical

易燃性等级 UL 94 V-0

针脚数 12

安装角度 180 °

额定电流Max 3A/触头

工作温度Max 105 ℃

工作温度Min -65 ℃

封装参数

安装方式 Through Hole

引脚间距 2.54 mm

外形尺寸

长度 33.5 mm

宽度 13.9 mm

高度 13.94 mm

引脚间距 2.54 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Copper Alloy

工作温度 -65℃ ~ 105℃

外壳材质 Thermoplastic

其他

产品生命周期 Active

包装方式 Tube

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

6-103080-0引脚图与封装图

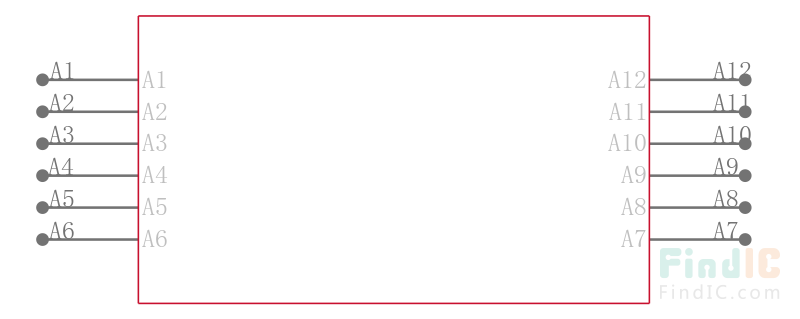

6-103080-0引脚图

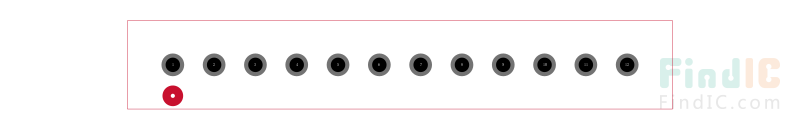

6-103080-0封装图

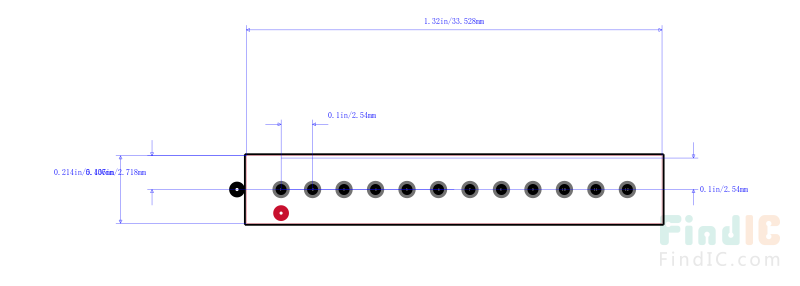

6-103080-0封装焊盘图
在线购买6-103080-0
型号: 6-103080-0
制造商: TE Connectivity 泰科
描述:Conn Shrouded Header HDR 12POS 2.54mm Solder ST Thru-Hole Tube
替代型号6-103080-0
型号/品牌 代替类型 替代型号对比

6-103080-0

TE Connectivity 泰科

当前型号

当前型号

1-103080-0

泰科

功能相似

6-103080-0和1-103080-0的区别
