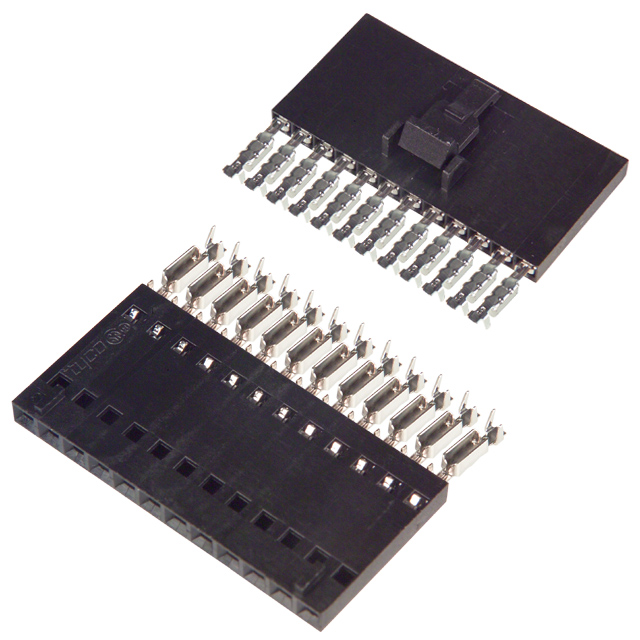

AMP FROM TE CONNECTIVITY 6-103956-1 线至板连接器, AMPMODU MTE系列, 12 触点, 插座, 2.54 mm, IDC / IDT, 1 排
12 位置矩形连 插座 IDC 锡 22-26 AWG
得捷:
CONN RCPT 12POS IDC 22-26AWG TIN
e络盟:
AMP FROM TE CONNECTIVITY 6-103956-1 线至板连接器, AMPMODU MTE系列, 12 触点, 插座, 2.54 mm, IDC / IDT, 1 排
艾睿:
Reduce safety concerns with this idc connector 6-103956-1 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This RCP connector&s;s 12 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a receptacle type gender. Its pitch is 2.54 mm. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 60.96 mm long, 5.08 mm tall and 15.24 mm deep. It uses the idt termination method. 6-103956-1 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C.
安富利:
Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Strip
Verical:
Conn Wire to Board F 12 POS 2.54mm IDT ST Cable Mount Tube
MASTER:
RCPT ASSY, AMPMODU MTE, SINGLE ROW, .100 C/L, LATCHED & POLARIZED, FOR #22-#26
Powell:
.100 AMPMODU Headers, Housings & Contacts
Electro Sonic:
2X12 MTE RCPT SR LATCH .100CL
触点数 12
极性 Female
线规 22AWG ~ 26AWG
触点电镀 Tin
排数 1
易燃性等级 UL 94 V-0
针脚数 12
额定电流Max 3A/触头
接触电阻Max 15 mΩ
引脚间距 2.54 mm
长度 30.4 mm
高度 5.08 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
制造应用 Computers & Computer Peripherals, Automotive, Medical, Communications & Networking, Test & Measurement, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
6-103956-1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1-103956-1 泰科 | 功能相似 | 6-103956-1和1-103956-1的区别 |
