6-103635-7

集管和线壳 LATCHING HDR SHRD 18 W/O HOLD-DN 15AU CNT

针座 通孔，直角 18 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 18POS 2.54MM

贸泽:
集管和线壳 LATCHING HDR SHRD 18 W/O HOLD-DN 15AU CNT

艾睿:

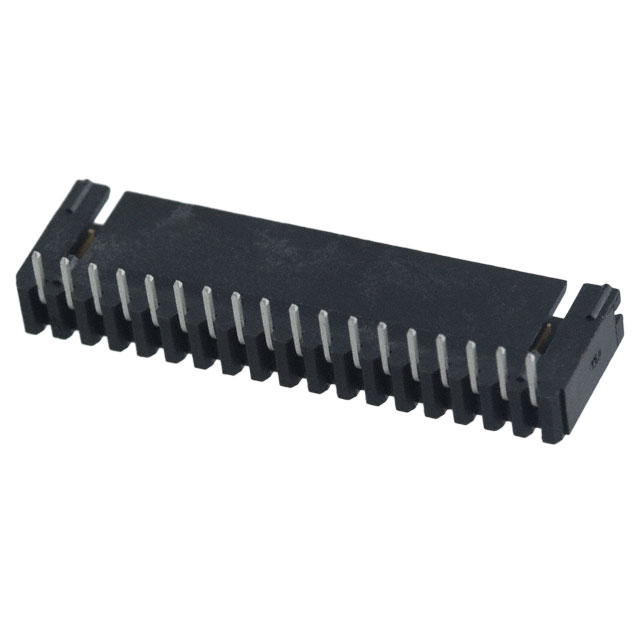

Mounting this shrouded 6-103635-7 header connector from TE Connectivity to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 18 contacts that are made out of brass and plated with gold over nickel. It has a right angle body orientation. This is a 1-row connector. Its pitch is 2.54 mm. It has a header type gender. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 48.26 mm long, 6.98 mm tall and 13.59 mm deep. 6-103635-7 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C.

安富利:
Conn Shrouded Header HDR 18 POS 2.54mm Solder RA Thru-Hole Tube

Verical:
Conn Shrouded Header 4 Sides M 18 POS 2.54mm Solder RA Side Entry Thru-Hole Box/Tube

MASTER:
HDRASSY,RTANG,SGLEROW2.54[.100]C/L,0.64[.025]SQPST, WITHPLZN&LATCHING;,AMPMODUMTE

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
18 MTE HDR SRRA LTCH.100CL LF

Electro Sonic:
18 MTE HDR SRRA LTCH.100CL LF
