6-103672-5

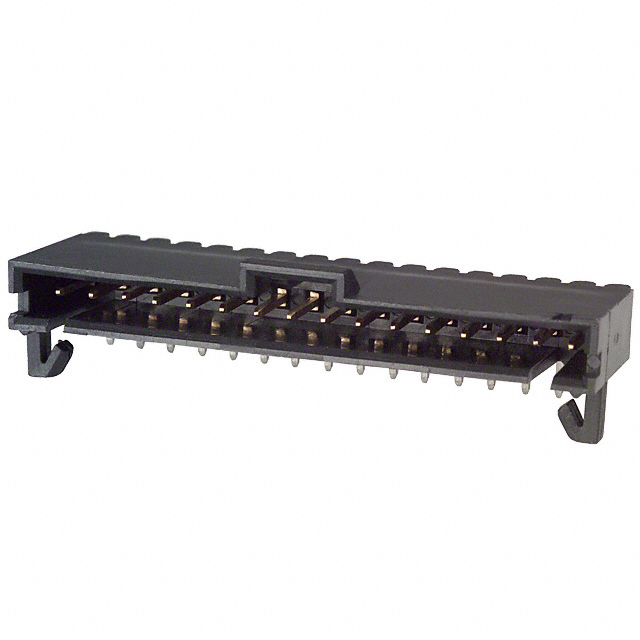

Conn Shrouded Header HDR 16POS 2.54mm Solder RA Thru-Hole Tube

16 MTE HDR SRRA LATCH W/HLDWN

得捷:
CONN HEADER R/A 16POS 2.54MM

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded 6-103672-5 header connector from TE Connectivity. This HDR connector&s;s 16 contacts that are made out of brass and plated with tin over nickel. It has a right angle body orientation. Its pitch is 2.54 mm. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 43.18 mm long, 6.99 mm tall and 13.59 mm deep. 6-103672-5 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tube

Verical:
Conn Shrouded Header 4 Sides HDR 16 POS 2.54mm Solder RA Side Entry Thru-Hole Tube

Newark:
# AMP - TE CONNECTIVITY  6-103672-5  16 MTE HDR SRRA LATCH W/HLDWN New

MASTER:
HDR ASSY, RT ANG, SINGLE ROW 2.54[.100] CL, 0.64[.025] SQ POST, WITH PLZN & HOLD

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
16 MTE HDR SRRA LATCH W/HLDWN

Electro Sonic:
16 MTE HDR SRRA LATCH W/HLDWN
