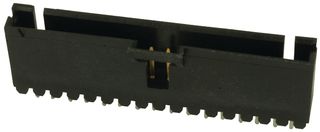

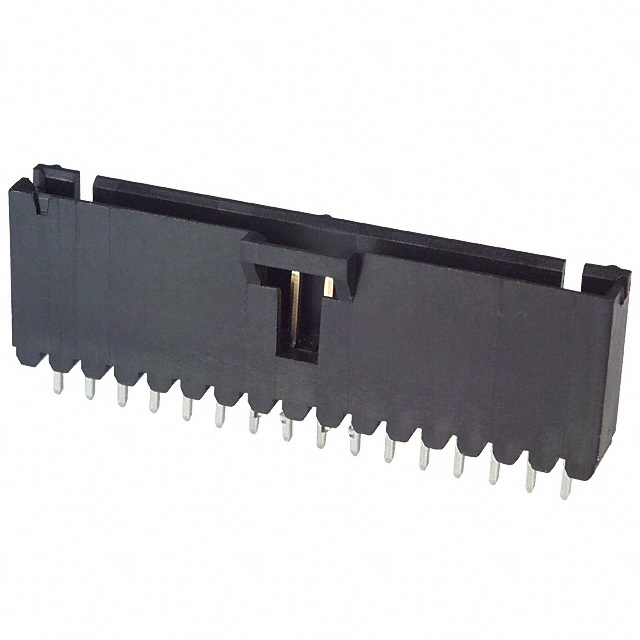

AMPMODU 16 位置 通孔 单排 直 0.100英寸 卡钩 插头
针座 通孔 16 位置 0.100"(2.54mm)
得捷:
CONN HEADER VERT 16POS 2.54MM
贸泽:
Headers & Wire Housings HDR PIN 1X16C VRT
艾睿:
Mounting this shrouded 6-104909-5 header connector from TE Connectivity to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 16 contacts that are made out of brass and plated with gold over nickel. It has a header type gender. This is a 1-row connector. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 43.18 mm long, 13.59 mm tall and 6.98 mm deep. This connector has an operating temperature of -65 to 105 °C. 6-104909-5 is housed in black thermoplastic. It uses the solder termination method.
Chip1Stop:
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube
Verical:
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Box/Tube
Newark:
# AMP - TE CONNECTIVITY 6-104909-5 16 MTE HDR SRST LATCH W/HLDWN New
MASTER:
16 MTE HDR SRST LATCH W/HLDWN
Powell:
.100 AMPMODU Headers, Housings & Contacts
Online Components:
16 MTE HDR SRST LATCH W/HLDWN
Electro Sonic:
16 MTE HDR SRST LATCH W/HLDWN
触点数 16
极性 Male
触点电镀 Tin
额定电流 3 A
绝缘电阻 5000 MΩ
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 16
安装角度 180 °
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
接触电阻Max 15 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 43.18 mm
宽度 6.66 mm
高度 13.59 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
制造应用 汽车,通用,医疗,电信
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
6-104909-5 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1-103670-5 泰科 | 功能相似 | 6-104909-5和1-103670-5的区别 |
