SL EM 319 L

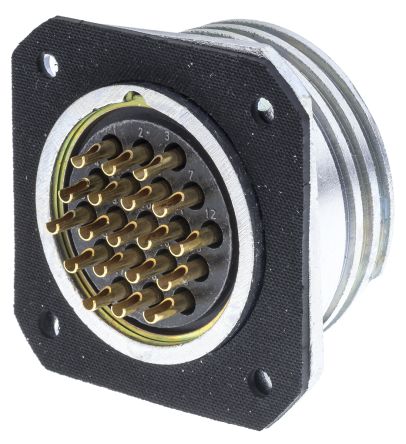

SL EM 319 L图片1

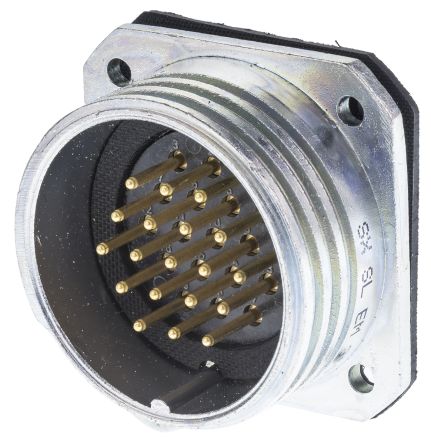

SL EM 319 L图片2
SL EM 319 L图片3
SL EM 319 L图片4
SL EM 319 L概述

SL 61 插座Amphenol 的这些 SL 61 系列面板安装插座的设计考虑了易于布线和维护。 它们具有确保牢固配接以防衰退的螺钉锁定螺纹,以及坚固的铝合金连接器,确保更加可靠。4 个套圈固定孔 E | \- 尺寸 10:  Ø 3.2 mm \- 尺寸 20、30、40:  Ø 3.5 mm ---|--- 参照 | 外壳 | 数目 | 安装 | Ø F ---|---|---|---|--- Amphenol | 尺寸 | 电流 | C mm | mm **公底座** |   |   |   |   SL EM 13 U | 10 | 3 x 10 A | 19 | 16.5 SL EM 14 V | 10 | 4 x 10 A | 19 | 16.5 SL EM 23 C | 20 | 3 x 25 A | 24 | 25.5 SL EM 25 D | 20 | 2 x 25 A + 3 x 10 A | 24 | 25.5 SL EM 27 E | 20 | 7 x 10 A | 24 | 25.5 SL EM 212 AF | 20 | 12 x 10 A | 24 | 25.5 SL EM 222 P | 20 | 22 x 7.5 A | 24 | 25.5 SL EM 34 H | 30 | 4 x 50 A | 34 | 35.5 SL EM 37 Y | 30 | 1 x 50 A + 6 x 25 A | 34 | 35.5 SL EM 319 L | 30 | 19 x 10 A | 34 | 35.5 SL EM 337 P | 30 | 37 x 7.5 A | 34 | 35.5 SL EM 419 AR | 40 | 19 x 25 A | 41 | 47 **直角母** |   |   |   |   SL EF 13 U | 10 | 3 x 10 A | 19 | 16.5 SL EF 14 V | 10 | 4 x 10 A | 19 | 16.5 SL EF 23 C | 20 | 3 x 25 A | 24 | 25.5 SL EF 25 D | 20 | 2 x 25 A + 3 x 10 A | 24 | 25.5 SL EF 27 E | 20 | 7 x 10 A | 24 | 25.5 SL EF 212 AF | 20 | 12 x 10 A | 24 | 25.5 SL EF 222 P | 20 | 22 x 7.5 A | 24 | 25.5 SL EF 37 Y | 30 | 1 x 50 A + 6 x 25 A | 34 | 35.5 SL EF 319 L | 30 | 19 x 10 A | 34 | 35.5 SL EF 337 P | 30 | 37 x 7.5 A | 34 | 35.5 SL EF 419 AR | 40 | 19 x 25 A | 41 | 47 ### Amphenol - SL61 series### Cylindrical connectors - SL 61 seriesThis family of connectors is widely used in industrial and electronic applications. This series includes: sockets fitted with male or female contacts, plugs with a choice of straight or angled connectors and accessories blanking plugs, sealing sleeves. Available in four enclosure sizes, four types of contacts including currents ranging from 7.5 to 50 amperes, and different contact arrangements. Connected using screws, with positioning and guiding pin. Dimensions --- Size 10 | 280 V eff / RMS 225 V eff / RMS Size 20 | 440 V eff / RMS 380 V eff / RMS   | 380 V eff / RMS 280 V eff / RMS 150 V eff / RMS Size 30 | 500 V eff / RMS 480 V eff / RMS   | 400 V eff / RMS 175 V eff / RMS Size 40 | 400 V eff / RMS type | Ø | rear cup | cross-section | current ---|---|---|---|--- of cts | pin | Int. Ø | max. wire | rated ● | 1 mm | 1.1 mm | 0.75 mm2 | 7.5 A   | 1.5 mm | 1.7 mm | 1.75 mm2 | 10 A   | 3 mm | 3.1 mm | 5.1 mm2 | 25 A   | 5 mm | 5.1 mm | 13 mm2 | 50 A Four connector sizes: | 10, 20, 30, 40 ---|--- Four contact sizes: | 7.5, 10, 25, 50 A Materials sockets, plug bodies, connectors: | lightweight alloy Surface treatment: |   \- sockets, plug bodies: | white cadmium plating \- rear connectors: | black treatment, non-conductive \- cable clamps rear connectors: | lever \- collar seals sockets and sealing sleeves: | neoprene \- insulation sockets and plug bodies: | alkyd \- contacts: | made from copper alloy \- coating: | gold-plated nickel Contact connection method: | by soldering Contact resistance: | ≤ 5 mΩ Protection index: | IP 55 with sealing sleeves Operating temperature: | -40°C → +85°C

SL 61 圆形插座

的这些 SL 61 系列面板安装插座的设计考虑了易于布线和维护。 它们具有确保牢固配接以防衰退的螺钉锁定螺纹,以及坚固的铝合金连接器,确保更加可靠。

### Amphenol - SL 61 Series Circular Connectors

This family of connectors is widely used in industrial and electronic applications.

This series includes: sockets fitted with male or female contacts, plugs with a choice of straight or angled connectors and accessories blanking plugs, sealing sleeves.

Available in four enclosure sizes, four types of contacts including currents ranging from 7.5 to 50 Amperes, and different contact arrangements.

Connected using screws, with positioning and guiding pin.

SL EM 319 L中文资料参数规格
技术参数

触点数 19

极性 Male

额定电流 10 A

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压 400 VAC

封装参数

安装方式 Solder

数据手册

在线购买SL EM 319 L
型号: SL EM 319 L
制造商: Amphenol 安费诺
描述:SL 61 插座 Amphenol 的这些 SL 61 系列面板安装插座的设计考虑了易于布线和维护。 它们具有确保牢固配接以防衰退的螺钉锁定螺纹,以及坚固的铝合金连接器,确保更加可靠。 4 个套圈固定孔 E | \- 尺寸 10:  Ø 3.2 mm \- 尺寸 20、30、40:  Ø 3.5 mm ---|--- 参照 | 外壳 | 数目 | 安装 | Ø F ---|---|---|---|--- Amphenol | 尺寸 | 电流 | C mm | mm **公底座** |   |   |   |   SL EM 13 U | 10 | 3 x 10 A | 19 | 16.5 SL EM 14 V | 10 | 4 x 10 A | 19 | 16.5 SL EM 23 C | 20 | 3 x 25 A | 24 | 25.5 SL EM 25 D | 20 | 2 x 25 A + 3 x 10 A | 24 | 25.5 SL EM 27 E | 20 | 7 x 10 A | 24 | 25.5 SL EM 212 AF | 20 | 12 x 10 A | 24 | 25.5 SL EM 222 P | 20 | 22 x 7.5 A | 24 | 25.5 SL EM 34 H | 30 | 4 x 50 A | 34 | 35.5 SL EM 37 Y | 30 | 1 x 50 A + 6 x 25 A | 34 | 35.5 SL EM 319 L | 30 | 19 x 10 A | 34 | 35.5 SL EM 337 P | 30 | 37 x 7.5 A | 34 | 35.5 SL EM 419 AR | 40 | 19 x 25 A | 41 | 47 **直角母** |   |   |   |   SL EF 13 U | 10 | 3 x 10 A | 19 | 16.5 SL EF 14 V | 10 | 4 x 10 A | 19 | 16.5 SL EF 23 C | 20 | 3 x 25 A | 24 | 25.5 SL EF 25 D | 20 | 2 x 25 A + 3 x 10 A | 24 | 25.5 SL EF 27 E | 20 | 7 x 10 A | 24 | 25.5 SL EF 212
