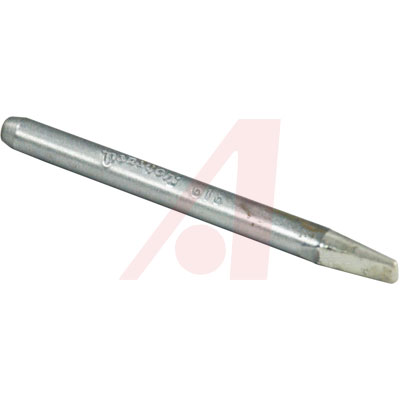

SOLDERING IRON TIP, SCREWDRIVER STYLE 3/16IN X 2-1/4IN

Any tradesman worth their salt will tell you, "If you want a job to turn out right, you"ve got to start with the right materials." We incorporate that philosophy into our soldering tips. Every Paragon soldering tip starts with a solid core of Tellurium Copper. We know of no better alloy that combines the characteristics of high thermal conductivity with corrosion resistance required for effective soldering.

Subsequently, all tips then undergo a multitude of processes that include iron cladding, nickel plating, chrome coating and pre-tinning. Each process is conducted in a clean environment to prevent contamination and ensure proper material adherence. The end result is a soldering tip that provides optimal performance over a long life span.

618中文资料参数规格
物理参数

材质 Copper

其他

For Use With 3110 Soldering Irons

Material Copper

Primary Type Soldering Tip

Temperature, Rating 940 °F @ 35 W, 504 °C @ 35 W, 890 °F @ 30 W, 477 °C @ 30 W, 835 °F @ 25 W, 446 °C @ 25 W

Tip Dimensions 0.1875 in.

Tip Length 2.25 in.

Tip Series 600 Series

Tip Shape Screwdriver

Type Tips

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买618
型号: 618
制造商: American Beauty
描述:SOLDERING IRON TIP, SCREWDRIVER STYLE 3/16IN X 2-1/4IN
