640385-6

AMP - TE CONNECTIVITY 640385-6 Board-To-Board Connector, 3.96mm, 6Contacts, Header, MTA-156 Series, Through Hole, 1Rows

针座 通孔，直角 6 位置 0.156"（3.96mm）

得捷:
CONN HEADER R/A 6POS 3.96MM

贸泽:
Headers & Wire Housings FLAT HEADER R.A. 6P Square post tin

艾睿:

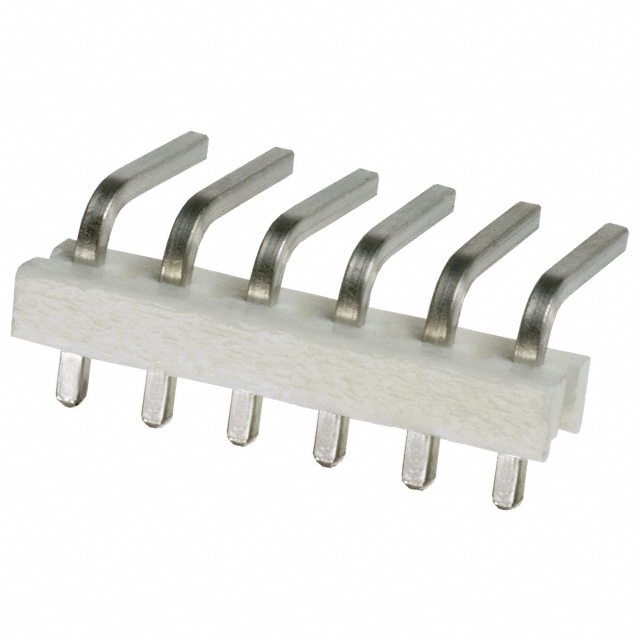

Thanks to TE Connectivity&s;s unshrouded 640385-6 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 6 contacts that are made out of copper alloy and plated with tin over nickel. It has a right angle body orientation. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 600 VAC. Its pitch is 3.96 mm. This device has a maximum current rating of 7 A/contact. It uses the solder termination method. 640385-6 is housed in white polyester. This product is 23.77 mm long, 5.72 mm tall and 16.26 mm deep. This connector has an operating temperature of -55 to 105 °C.

Allied Electronics:
Connector HEADER RTANG 6POS .156 TIN

Jameco:
Connector Unshrouded Header 6 Position 3.96mm Solder Right Angle Thru-Hole

Verical:
Conn Unshrouded Header HDR 6 POS 3.96mm Solder RA Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  640385-6  Board-To-Board Connector, 3.96 mm, 6 Contacts, Header, MTA-156 Series, Through Hole, 1 Rows

MASTER:
MTA-156 HEADER ASSEMBLY, PLAIN, RIGHT ANGLE, .045 SQUARE POST, TIN PLATED

Online Components:
06P MTA156 HDR ASSY SQ R/A

Electro Sonic:
06P MTA156 HDR ASSY SQ R/A
