集管和线壳 CLOSED W/O TABS 4P white tin 24 AWG

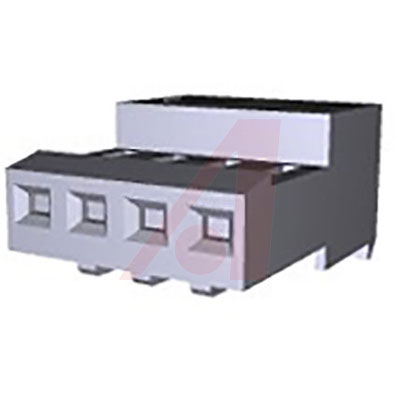

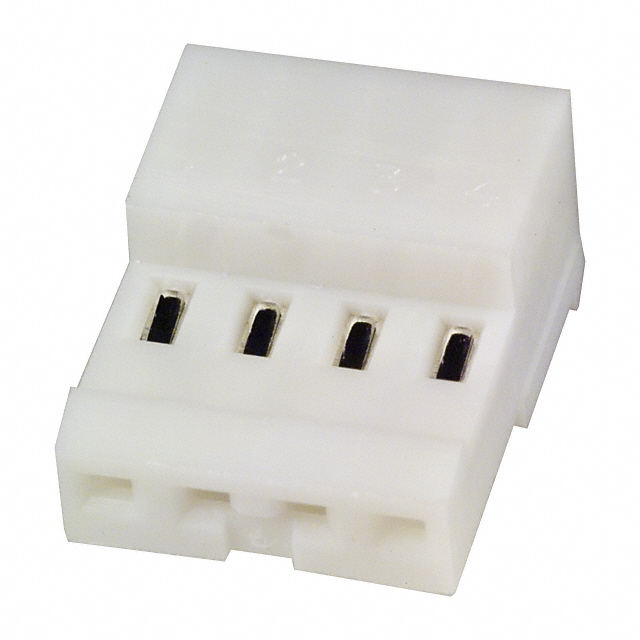

** MTA-100 IDC Closed End Receptacle Connectors**
MTA-100 IDC Closed End Connectors with a 2.54mm centerline pre-loaded with IDC contacts. These MTA-100 IDC Closed End Connectors are end to end stackable and have molded ribs on the housings to prevent reverse mating. MTA-100 IDC Closed End Connectors with part numbers X-643813-X, X-643814-X, X-643815-X, X-643816-X, X-644042-X, X-644044-X and X-644083-X have polarizing tabs. MTA-100 IDC Closed End Connectors with part numbers X-641534-X, X-641535-X and X-641536-X are LED connectors designed to mate with the 0.36-0.51 mm [.014-.020 inch] diameter posts or square leads.
触点数 4
极性 Female
线规 24 AWG
触点电镀 Tin Lead
额定电压AC 250 V
绝缘电阻 5000 MΩ
排数 1
易燃性等级 UL 94 V-2
针脚数 4
带凸肩 No
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
接触电阻Max 6 mΩ
引脚数 4
封装 100
引脚间距 2.54 mm
长度 10.2 mm
宽度 6.99 mm
高度 6.99 mm
封装 100
引脚间距 2.54 mm
外壳颜色 White
颜色 White
触点材质 Copper Alloy
外壳材质 Nylon
产品生命周期 Superseded
包装方式 Bulk
制造应用 Signal
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
640441-4 TE Connectivity 泰科 | 当前型号 | 当前型号 |
3-640441-4 泰科 | 类似代替 | 640441-4和3-640441-4的区别 |
