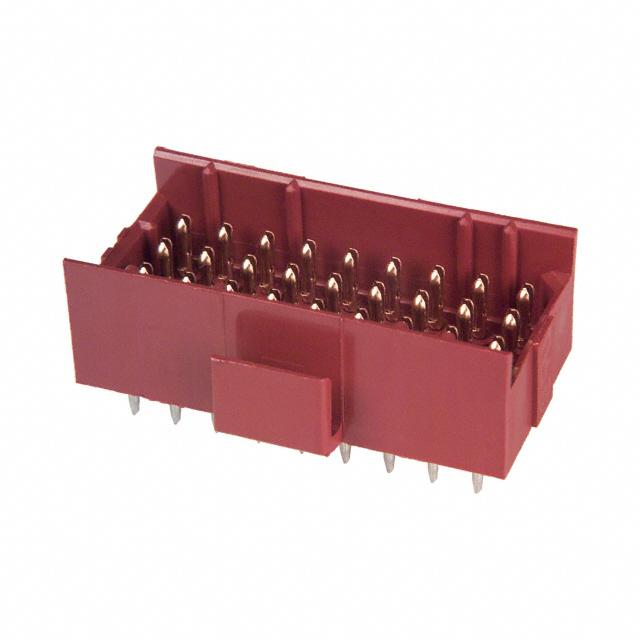

640506-2

Connector Power Header 36Position 4.19mm Solder Straight Through Hole 36 Terminal 1Port

针座 通孔 36 位置 0.165"（4.20mm）

得捷:
CONN HEADER VERT 36POS 4.2MM

艾睿:
Create a versatile connection with this 640506-2 USB connector from TE Connectivity for a more rugged design. It has a maximum voltage rating of 250 VAC. This RCP connector&s;s 36 contacts that are made out of phosphor bronze and plated with pre-tin. Its pitch is 4.19 mm. This is a 9-row connector. It has a receptacle type gender. It has a straight body orientation. This device has a maximum current rating of 9 A/contact. 640506-2 is housed in nylon. It uses the solder termination method. This product is 27.55 mm long and 41.91 mm. This harting connector has an operating temperature of -55 to 105 °C.

Jameco:
Connector Power Header 36 Position 4.19mm Solder Straight Through Hole 36 Terminal 1 Port

安富利:
Conn Rectangular PIN 36 POS 4.19mm Solder ST Thru-Hole Bag

Chip1Stop:
Conn Rectangular PIN 36 POS 4.19mm Solder ST Thru-Hole Bag

Verical:
Conn HDR, 36P MR HDR ASSY V0 RED

MASTER:
HEADER ASSEMBLY, PIN, 36 POSITION MR.

Powell:
.165" Centerline, 250 V, 9 A max.

Online Components:
36P MR HDR ASSY V0 RED

Electro Sonic:
36P MR HDR ASSY V0 RED
