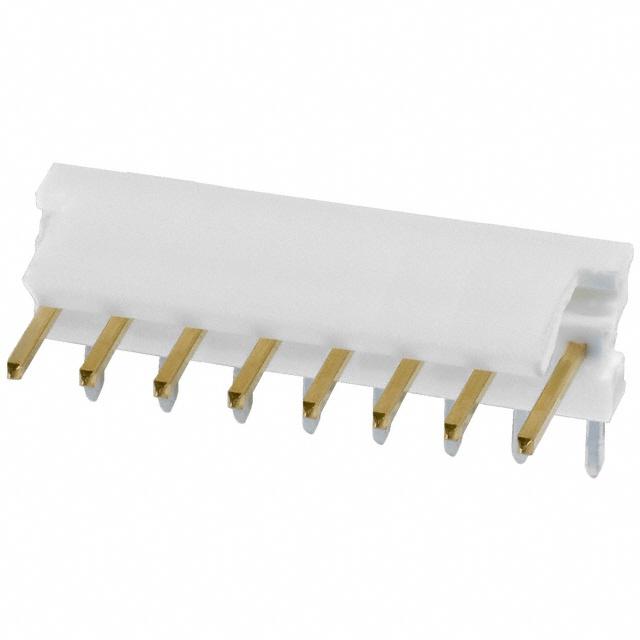

641216-8

AMP - TE CONNECTIVITY 641216-8 Wire-To-Board Connector, 2.54mm, 8Contacts, Plug, MTA-100 Series, Through Hole, 1Rows

针座 通孔，直角 8 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 8POS 2.54MM

贸泽:
Headers & Wire Housings FRICTION LCK HDR 8P R.A. Post gold

艾睿:
Use this wire to board 641216-8 header connector from TE Connectivity where IDC ribbon cables are used. This HDR connector&s;s 8 contacts that are made out of copper alloy and plated with gold over nickel. This is a 1-row connector. It has a right angle body orientation. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 5 A/contact. 641216-8 is housed in white polyester. This product is 20.32 mm long, 5.72 mm tall and 11.05 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C.

Verical:
Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  641216-8  Wire-To-Board Connector, 2.54 mm, 8 Contacts, Plug, MTA-100 Series, Through Hole, 1 Rows

MASTER:
MTA-100 HDR ASSY, FRICTION LOCK, NOTCHED, .025 SQUARE

Electro Sonic:
08P MTA100 HDR ASSY FL/RA 30AU
