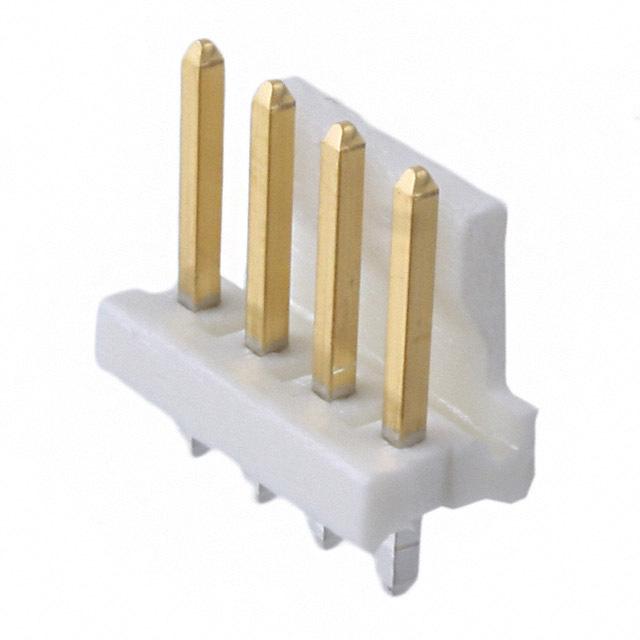

641120-4

Conn Wire to Board HDR 4POS 3.96mm Solder ST Thru-Hole

针座 通孔 4 位置 0.156"（3.96mm）

得捷:
CONN HEADER VERT 4POS 3.96MM

艾睿:
This wire to board 641120-4 header connector from TE Connectivity is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 4 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 600 VAC. This is a 1-row connector. Its pitch is 3.96 mm. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 7 A/contact. This connector has an operating temperature of -55 to 105 °C. This product is 15.85 mm long, 13.34 mm tall and 7.62 mm deep. 641120-4 is housed in white polyester. It uses the solder termination method.

Verical:
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole

Online Components:
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole

Electro Sonic:
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole
