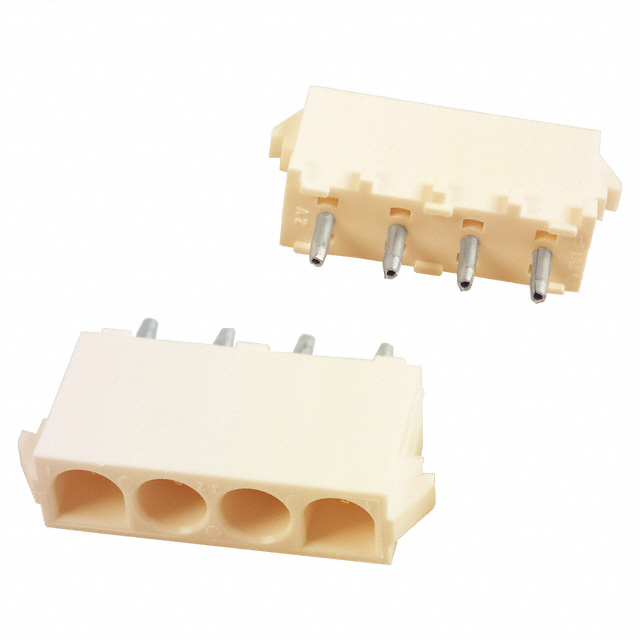

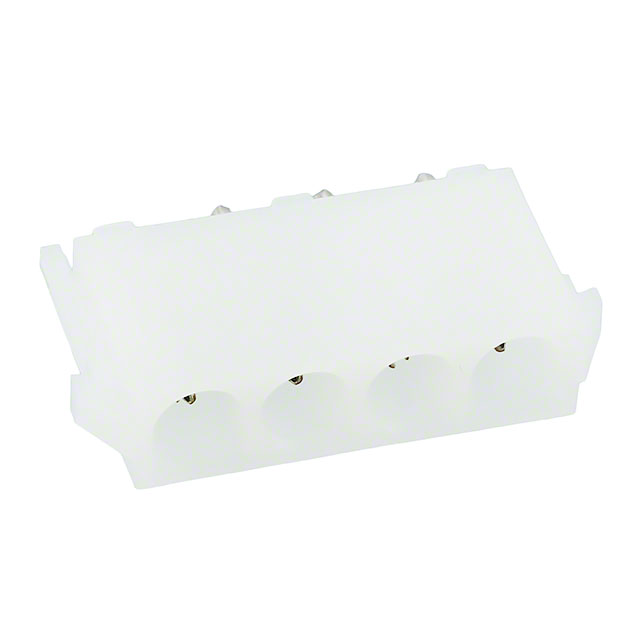

641967-1

AMP FROM TE CONNECTIVITY  641967-1  针座, 4路 UMNL/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/

04P UMNL PIN HDR ASSY POL NATL

Product Highlights

Header

Universal MATE-N-LOK

Not CompactPCI

6.35 mm Centerline, Matrix

Number of Circuits = 4

得捷:
CONN HEADER VERT 4POS 6.35MM

e络盟:
针座, 4路 UMNL/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/

艾睿:
This specially engineered 641967-1 power connector from TE Connectivity is designed for various high voltage and current supplies. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with pre-tin. This connector has a single port. Its pitch is 6.35 mm. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 600 VAC. This device has a maximum current rating of 19 A/contact. 641967-1 is housed in nylon. Its 4 terminals use the solder termination method. This product is 14.73 mm tall.

Jameco:
Connector Power Header 4 Position 6.35mm Solder Straight Through Hole 4 Terminal 1 Port

安富利:
Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port

Verical:
Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Mate-N-Lok™ Box

Newark:
# AMP - TE CONNECTIVITY  641967-1  Wire-To-Board Connector, 6.35 mm, 4 Contacts, Plug, Universal MATE-N-LOK Series, Through Hole

MASTER:
Wire-To-Board Connector - UL94V-2 - 6.35 mm - 4 Contacts - Header - Universal MATE-N-LOK Series.

Powell:
.250" Centerline, 600 V, 19 - 36 A max

Online Components:
04P UMNL PIN HDR ASSY POL NATL

Electro Sonic:
Wire-To-Board Connector - UL94V-2 - 6.35 mm - 4 Contacts - Header - Universal MATE-N-LOK Series.
