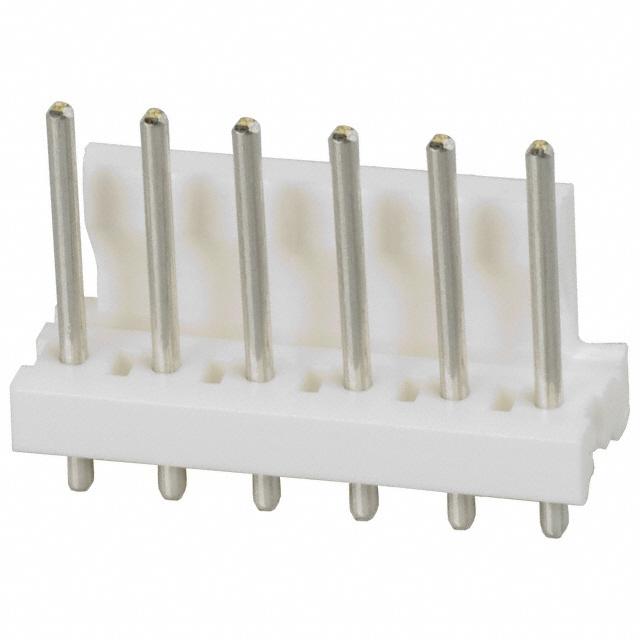

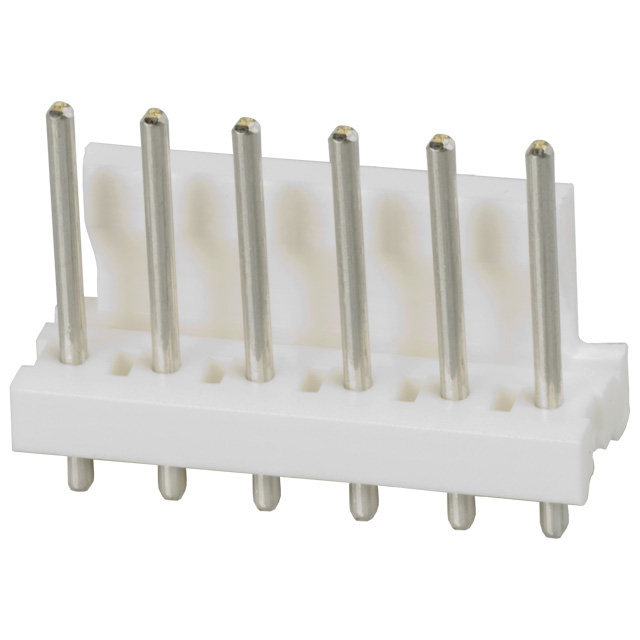

644753-6

Conn Wire to Board HDR 6POS 3.96mm Solder ST Thru-Hole Package

06P MTA156 HDR ASSY RN STR F/L

Product Highlights

MTA-156 Connectors

Number of Positions = 6

Mating Type = Header

Wire-to-Board Application

3.96 mm Contact Centerline Spacing

得捷:
CONN HEADER VERT 6POS 3.96MM

艾睿:

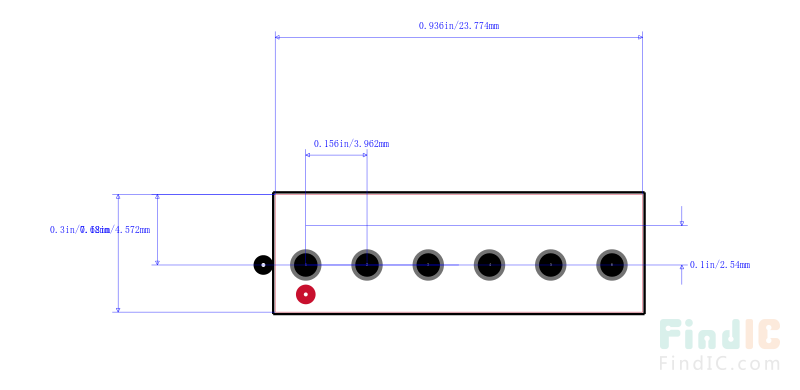

Safety is an important concern when designing electronic devices. TE Connectivity&s;s wire to board 644753-6 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 6 contacts that are made out of copper alloy and plated with tin. It has a header type gender. It has a straight body orientation. Its pitch is 3.96 mm. This is a 1-row connector. It has a maximum voltage rating of 600 VAC. This device has a maximum current rating of 7 A/contact. 644753-6 is housed in natural polyester. It uses the solder termination method. This product is 23.77 mm long, 13.33 mm tall and 7.62 mm deep. This connector has an operating temperature of -55 to 105 °C.

Jameco:
6 Position MTA156 Header Assembly Round Straight Friction Lock

Verical:
Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  644753-6  06P MTA156 HDR ASSY RN STR F/L New

MASTER:
MTA-.156 HEADER ASSEMBLY, FRICTION LOCK, STRAIGHT .045 ROUND POST, TIN PLATED, SPECIAL

Online Components:
06P MTA156 HDR ASSY RN STR F/L

Electro Sonic:
06P MTA156 HDR ASSY RN STR F/L
