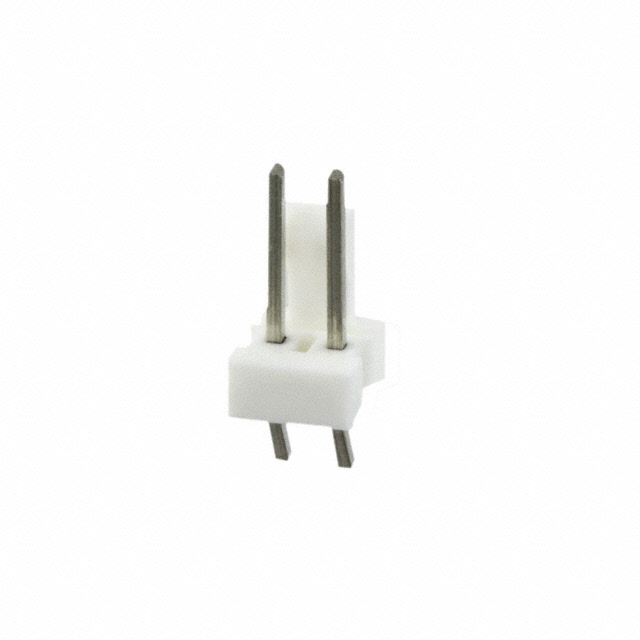

644874-2

Conn Wire to Board HDR 2POS 2.54mm Solder ST Thru-Hole

针座 通孔 2 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 2POS 2.54MM

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this wire to board 644874-2 header connector from TE Connectivity. This HDR connector&s;s 2 contacts that are made out of copper alloy and plated with tin. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. It has a header type gender. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. This product is 5.08 mm long, 10.03 mm tall and 5.72 mm deep. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. 644874-2 is housed in natural polyester.

Jameco:
Connector Wire to Board Header 2 Position 2.54mm Solder Straight Thru-Hole

安富利:
Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  644874-2  02P MTA100 HDR ASSY,SPCL BEND New

MASTER:
MTA-100 HEADER ASSEMBLY, FRICTION LOCK,NOTCHED, SQUARE POST,RETENTIVE LEG,TIN PLATED

Electro Sonic:
02P MTA100 HDR ASSY,SPCL BEND
