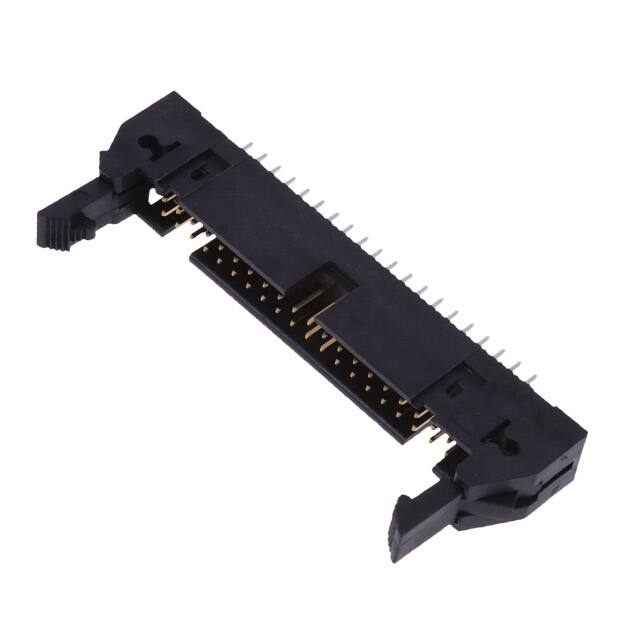

Look no further than the ejector 65863-087LF header connector from FCI, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 40 contacts that are made out of phosphor bronze alloy. It has a straight body orientation. This is a 2-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 1000 VAC. It has a header type gender. This device has a maximum current rating of 3 A/contact. The component will be shipped in tray format. It uses the solder termination method. This product is 71.88 mm long, 16.26 mm tall and 9.1 mm deep. This connector has an operating temperature of -65 to 125 °C. 65863-087LF is housed in blue polyester.
针座连接器 通孔 40 位置 0.100"（2.54mm）
得捷:
CONN HEADER VERT 40POS 2.54MM
艾睿:
Look no further than the ejector 65863-087LF header connector from FCI, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 40 contacts that are made out of phosphor bronze alloy. It has a straight body orientation. This is a 2-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 1000 VAC. It has a header type gender. This device has a maximum current rating of 3 A/contact. The component will be shipped in tray format. It uses the solder termination method. This product is 71.88 mm long, 16.26 mm tall and 9.1 mm deep. This connector has an operating temperature of -65 to 125 °C. 65863-087LF is housed in blue polyester.
