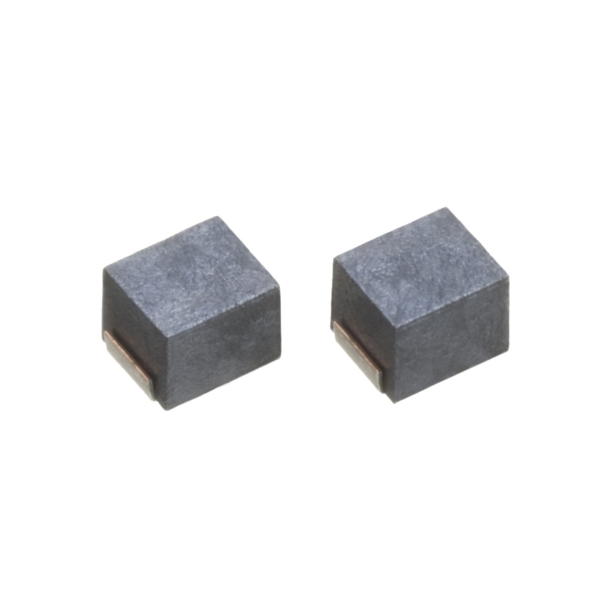

TDK NLV25T-120J-EF 表面贴装高频电感器, NLV-EF系列, 12 µH, ± 5%, 1008 [2520 公制], 30 MHz, 3.8 ohm
12 µH 无屏蔽 绕线 器 150 mA 3.8 欧姆最大 1008(2520 公制)
立创商城:
12uH ±5% 3.8Ω
得捷:
FIXED IND 12UH 150MA 3.8 OHM SMD
e络盟:
高频电感器, 12 µH, NLV系列, 150 mA, 1008 [2520 公制], 绕线, 3.8 ohm
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip NLV25T-120J-EF surface mount inductor from TDK to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 30M Hz. It has an inductance of 12u H. This product is 2.7 mm long, 1.9 mm tall and 2.1 mm deep. This SMD inductor has a maximum DC current of 150m A with a maximum resistance of 3.8 Ohm. It has a tolerance of 5%. This device is made with wirewound technology.
安富利:
NLV25T-120J-EF
Chip1Stop:
Ind RF Chip Unshielded Wirewound 12uH 5% 2.52MHz 25Q-Factor 150mA 1008 Blister T/R
Verical:
Inductor General Purpose Chip Molded/Unshielded Wirewound 12uH 5% 2.52MHz 25Q-Factor Ferrite 0.15A 3.8Ohm DCR 1008 T/R
Newark:
# TDK NLV25T-120J-EF Surface Mount High Frequency Inductor, NLV Series, 12 H, 5%, 1008 [2520 Metric], 30 MHz, 3.8 ohm
额定电流 150 mA
容差 ±5 %
电感 12 µH
自谐频率 30 MHz
产品系列 NLV-EF
电感公差 ±5 %
测试频率 2.52 MHz
电阻DC) 3.8 Ω
额定电流DC 150 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
精度 ±5 %
电阻DC Max 3.8 Ω
安装方式 Surface Mount

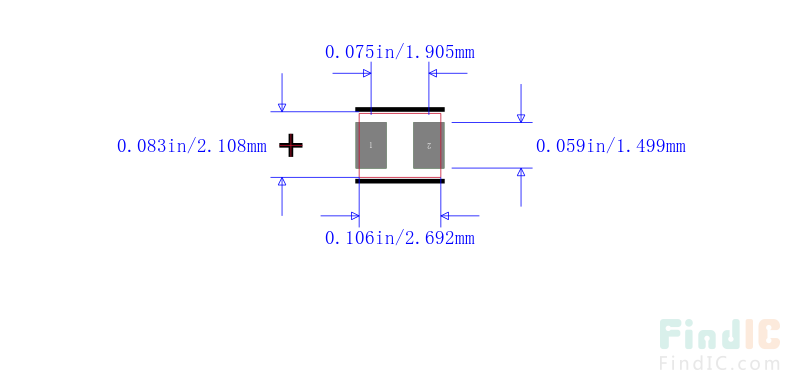

封装 1008
长度 2.5 mm
宽度 2 mm
高度 1.8 mm
封装 1008
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 2000
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 PB free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NLV25T-120J-EF TDK 东电化 | 当前型号 | 当前型号 |
ELJ-FC120JF 松下 | 功能相似 | NLV25T-120J-EF和ELJ-FC120JF的区别 |
LEM2520B120J 太诱 | 功能相似 | NLV25T-120J-EF和LEM2520B120J的区别 |
