NLV25T-270J-EF

TDK  NLV25T-270J-EF  表面贴装高频电感器, NLV-EF系列, 27 µH, ± 5%, 1008 [2520 公制], 21 MHz, 6.3 ohm

无屏蔽 绕线 器 6.3 欧姆最大 1008（2520 公制）

得捷:
FIXED IND 27UH 115MA 6.3 OHM SMD

立创商城:
27uH ±5% 6.3Ω

贸泽:
Fixed Inductors 27uH 6.3ohms 115mA Wound Ferrite

e络盟:
高频电感器, 27 µH, NLV系列, 115 mA, 1008 [2520 公制], 绕线, 6.3 ohm

艾睿:

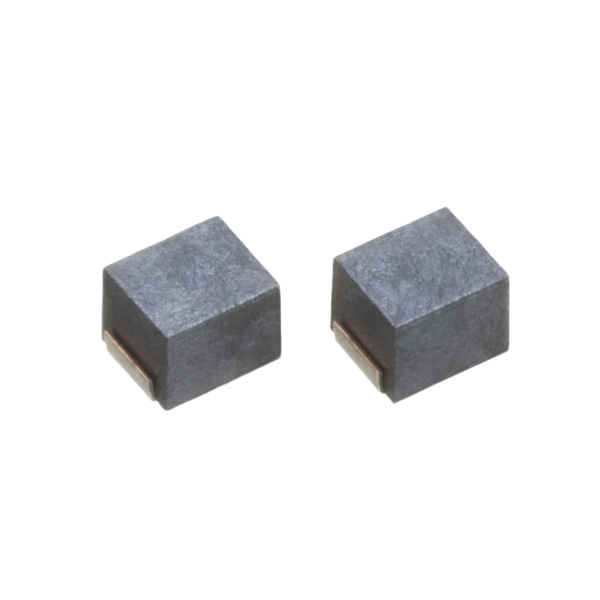

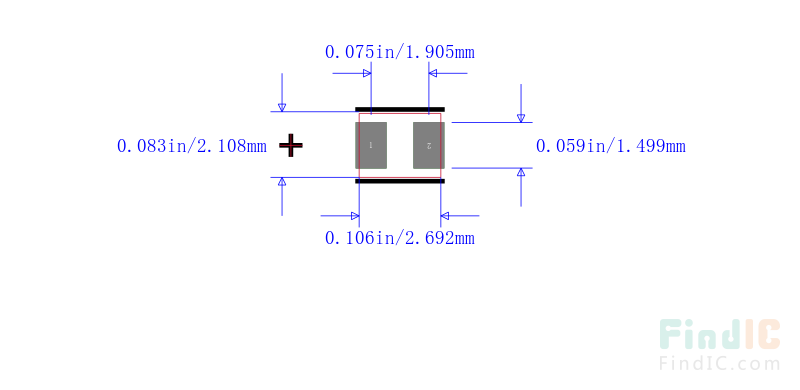

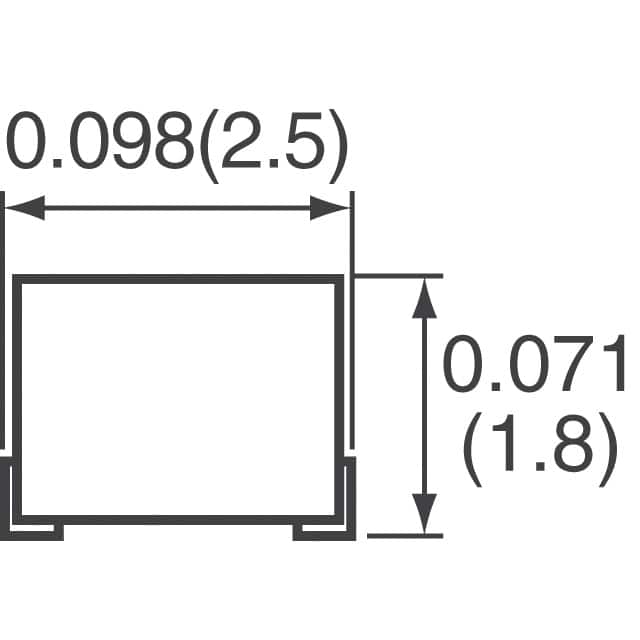

Make any circuit look clean and compact using this rf chip NLV25T-270J-EF surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 27u H. It has a tolerance of 5%. This product is 2.7 mm long, 1.9 mm tall and 2.1 mm deep. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 21M Hz. This SMD inductor has a maximum DC current of 115m A with a maximum resistance of 6.3 Ohm. This device is made with wirewound technology.

Chip1Stop:
Inductor RF Chip Unshielded Wirewound 27uH 5% 2.52MHz 25Q-Factor Ferrite 115mA 6.3Ohm DCR 1008 T/R

Verical:
Inductor General Purpose Chip Molded/Unshielded Wirewound 27uH 5% 2.52MHz 25Q-Factor Ferrite 0.115A 6.3Ohm DCR 1008 T/R

Newark:
Surface Mount High Frequency Inductor, NLV Series, 27 H, 5%, 1008 [2520 Metric], 21 MHz, 6.3 ohm
