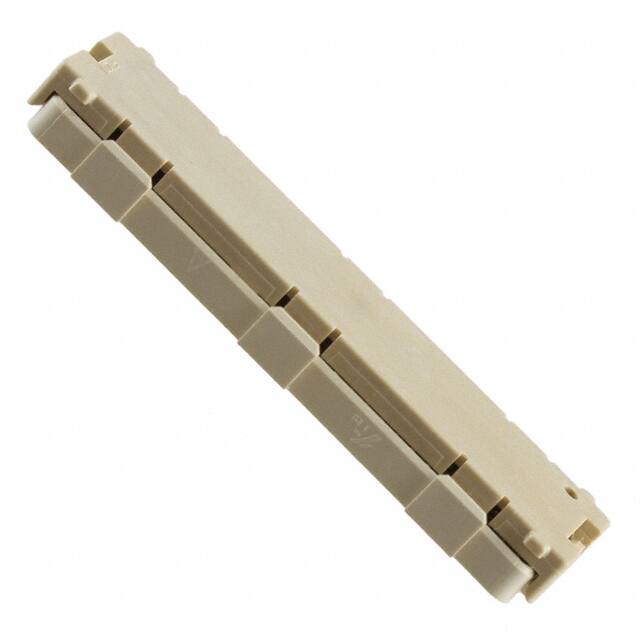

Mount this board to board 74217-001LF header connector from FCI on a jumper post on your PCB to support physical configuration options. This RCP connector&s;s 240 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 200 VAC. It has a straight body orientation. Its pitch is 1.27 mm. It has a receptacle type gender. This is a 8-row connector. This device has a maximum current rating of 0.45 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This connector has an operating temperature of -40 to 85 °C. It uses the solder termination method. This product is 42.3 mm long, 3.89 mm tall and 13.9 mm deep. 74217-001LF is housed in liquid crystal polymer.
240 位置 连接器 母插口阵列 表面贴装型 镀金
得捷:
CONN ARRAY RCPT 240POS SMD GOLD
艾睿:
Mount this board to board 74217-001LF header connector from FCI on a jumper post on your PCB to support physical configuration options. This RCP connector&s;s 240 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 200 VAC. It has a straight body orientation. Its pitch is 1.27 mm. It has a receptacle type gender. This is a 8-row connector. This device has a maximum current rating of 0.45 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This connector has an operating temperature of -40 to 85 °C. It uses the solder termination method. This product is 42.3 mm long, 3.89 mm tall and 13.9 mm deep. 74217-001LF is housed in liquid crystal polymer.
