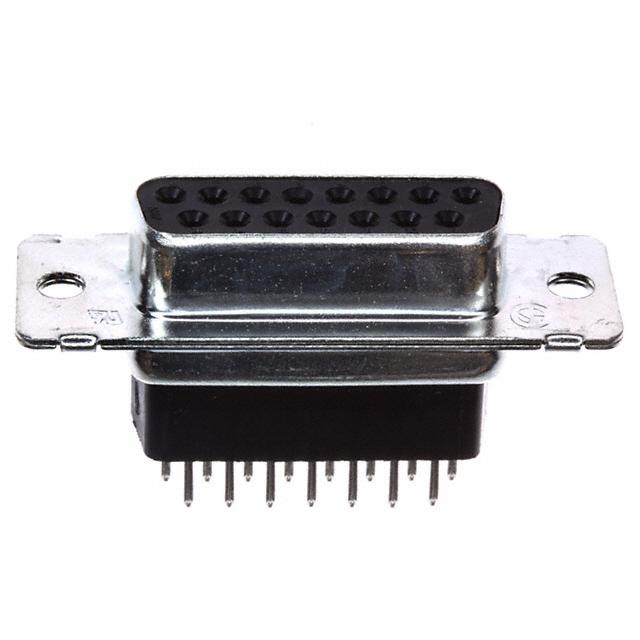

745185-7图片1

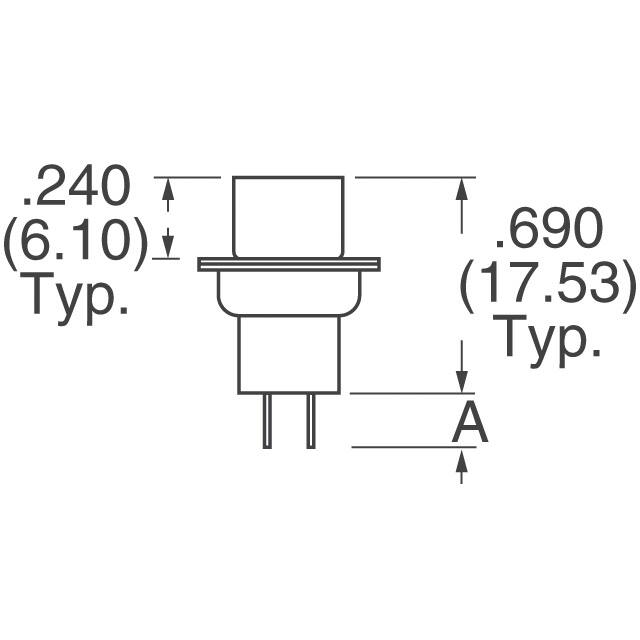

745185-7图片2
745185-7图片3
745185-7图片4
745185-7图片5
745185-7图片6
745185-7图片7
745185-7图片8
745185-7图片9
745185-7图片10
745185-7图片11
745185-7图片12
745185-7概述

Conn D-Subminiature SKT 15POS 2.74mm Solder ST Thru-Hole 15 Terminal 1Port

15 位 D-Sub 插座,母型插口


得捷:
CONN D-SUB RCPT 15POS VERT SLDR


贸泽:
D-Sub Standard Connectors HD-20 15P SOCKET


艾睿:
The 745185-7 DVI connector from TE Connectivity is perfect for communication between serial connections in your system. Its pitch is 2.74 mm. It has a straight body orientation. This socket type connector&s;s 15 contacts that are made out of phosphor bronze and plated with gold over nickel|gold over palladium nickel over nickel. This 2-row connector has a single port. It has a maximum voltage rating of 250 VDC|250VAC. 745185-7 is housed in thermoplastic. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 15 terminals use the solder termination method. This DVI connector has an operating temperature of -55 to 105 °C. This product is 39.14 mm long, 17.68 mm tall and 12.55 mm deep.


安富利:
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port


Chip1Stop:
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port


Powell:
Standard Board Mount Connectors


Electro Sonic:
15 RCPT SP/MS STD


745185-7中文资料参数规格
技术参数

触点数 15

极性 Female

触点电镀 Gold

排数 2

方向 Vertical

易燃性等级 UL 94 V-0

针脚数 15

工作温度Max 105 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

引脚间距 2.74 mm

外形尺寸

长度 39.14 mm

宽度 12.55 mm

高度 17.68 mm

引脚间距 2.74 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 105℃

外壳材质 Thermoplastic

其他

产品生命周期 Active

包装方式 Tube

制造应用 Signal

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

ELV标准 Compliant

数据手册

在线购买745185-7
型号: 745185-7
制造商: TE Connectivity 泰科
描述:Conn D-Subminiature SKT 15POS 2.74mm Solder ST Thru-Hole 15 Terminal 1Port
替代型号745185-7
型号/品牌 代替类型 替代型号对比

745185-7

TE Connectivity 泰科

当前型号

当前型号

5745185-7

泰科

功能相似

745185-7和5745185-7的区别
