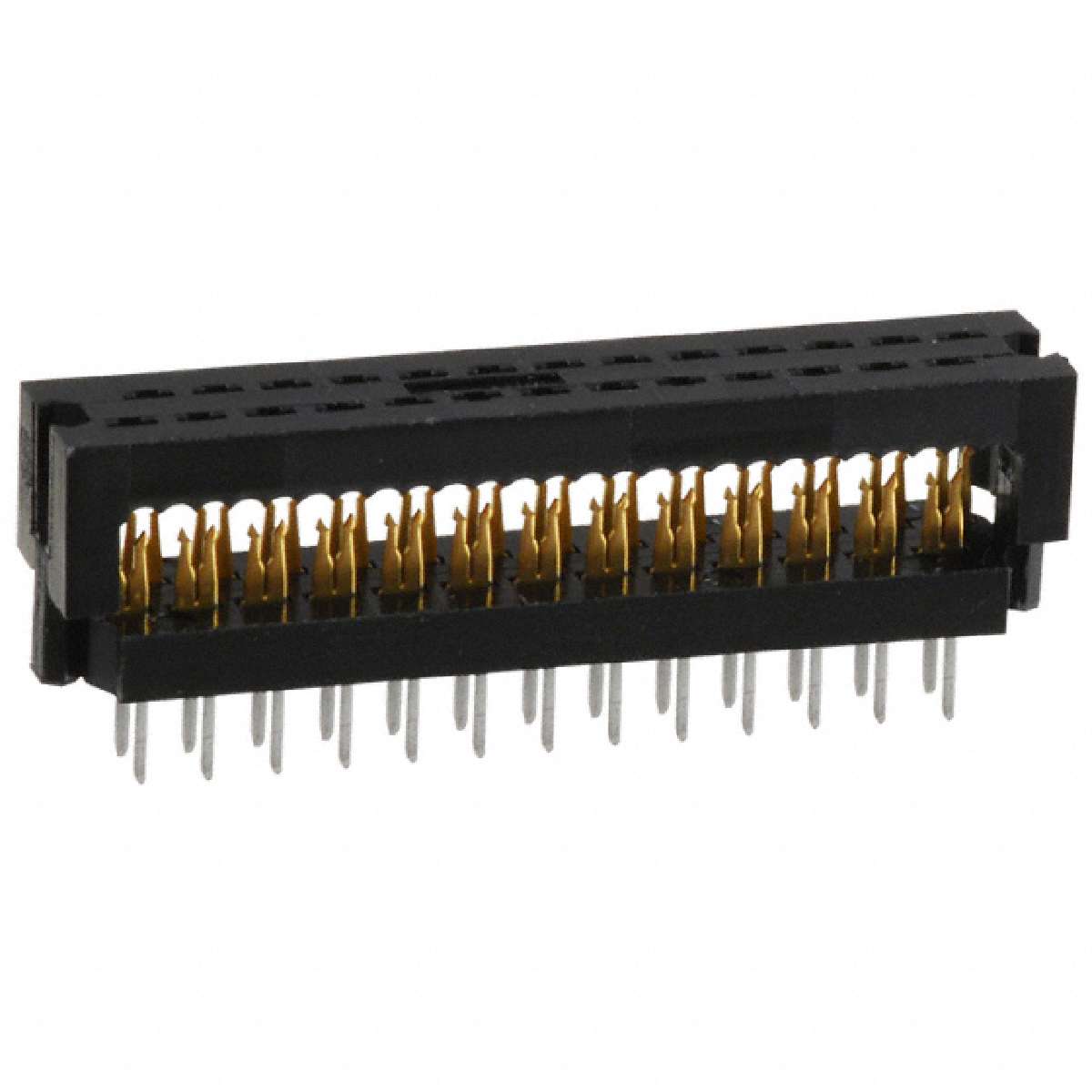

746610-6

Connector IDC Connector Male 26Position 2.54mm IDT Right Angle Cable Mount

26 位置 带状电缆，DIP 针座 黑色 IDC 26-28 AWG，绞合；26-30 AWG，实心 通孔

得捷:
CONN DIP HDR IDC 26POS VERT

贸泽:
Headers & Wire Housings 26P DIP PLUG IDC

艾睿:
This idc connector 746610-6 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This PL connector&s;s 26 contacts that are made out of phosphor bronze and plated with bright tin-lead over nickel. It has a maximum voltage rating of 250 VAC. It has a plug type gender. This is a 2-row connector. Its pitch is 2.54 mm. It has a right angle body orientation. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 37.59 mm long, 6.43 mm tall and 7.06 mm deep. 746610-6 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C.

Jameco:
Connector IDC Connector Male 26 Position 2.54mm IDT Right Angle Cable Mount

安富利:
Conn IDC Connector M 26 POS 2.54mm IDT RA Cable Mount

Verical:
Conn IDC Connector PL 26 POS 2.54mm Solder RA Thru-Hole Tube

Powell:
Ribbon Cable Connectors AMP-LATCH

Online Components:
026 DIP PLUG 100CL TIN

AMEYA360:
CONN PLUG IDC 26POS .1X.1 DIP

Electro Sonic:
026 DIP PLUG 100CL TIN
