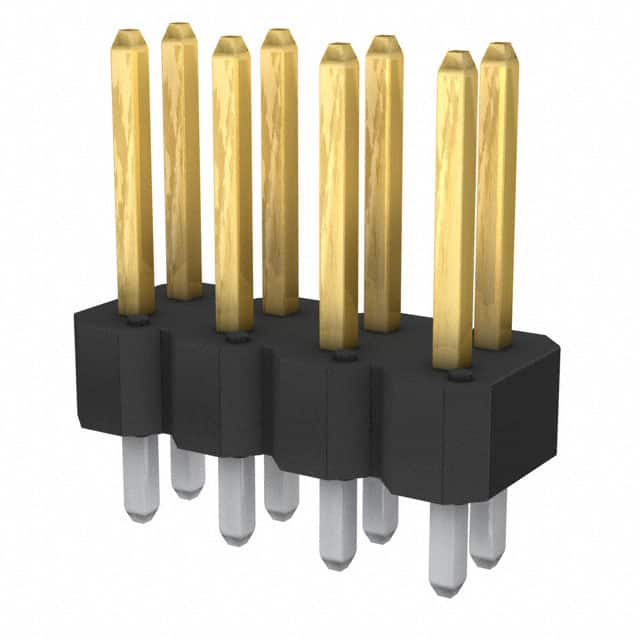

Protect your printed circuit boards from accidental damages with FCI&s;s unshrouded 77313-127-08LF header connector. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel/gxt over nickel. It has a straight body orientation. It has a maximum voltage rating of 1500 VAC. Its pitch is 2.54 mm. It has a header type gender. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 10.16 mm long, 9.14 mm tall and 4.83 mm deep. 77313-127-08LF is housed in black thermoplastic. It uses the solder termination method. This connector has an operating temperature of -65 to 125 °C.
Connector Header Through Hole 8 position 0.100" 2.54mm
得捷:
CONN HEADER VERT 8POS 2.54MM
艾睿:
Protect your printed circuit boards from accidental damages with FCI&s;s unshrouded 77313-127-08LF header connector. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel/gxt over nickel. It has a straight body orientation. It has a maximum voltage rating of 1500 VAC. Its pitch is 2.54 mm. It has a header type gender. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 10.16 mm long, 9.14 mm tall and 4.83 mm deep. 77313-127-08LF is housed in black thermoplastic. It uses the solder termination method. This connector has an operating temperature of -65 to 125 °C.
