796683-2

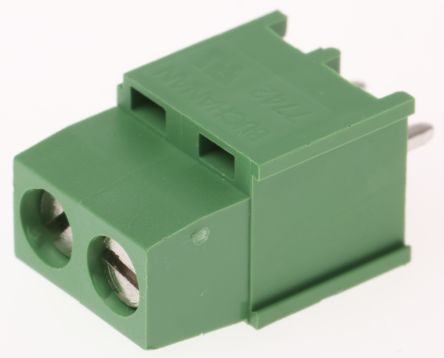

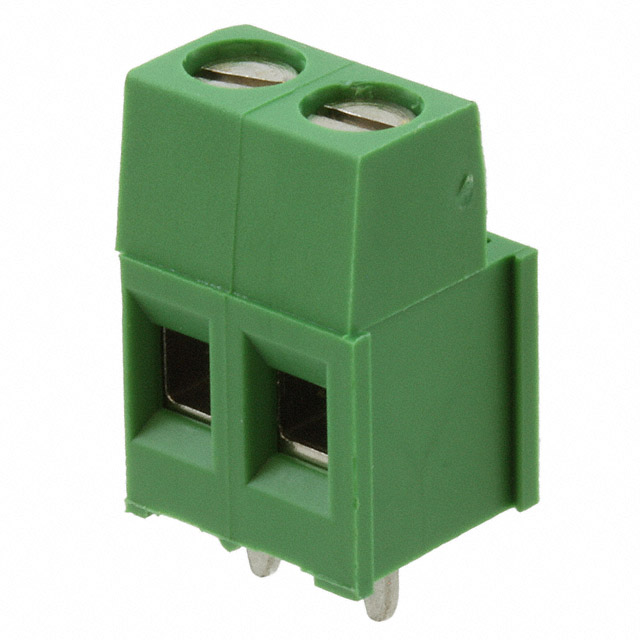

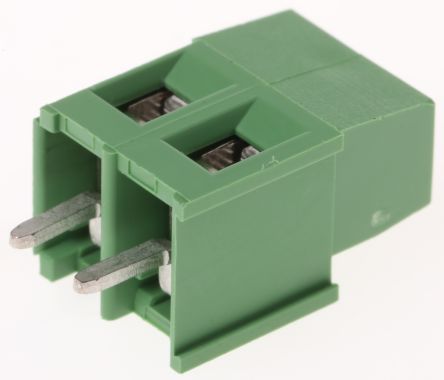

TE Connectivity TERMI-BLOK 系列 5mm 印刷电路板端子块，带互锁TERMI-BLOK 5mm 印刷电路板端子块，具有侧面线接入、板联锁功能和测试功能。 这些 5mm TERMI-BLOK 垂直安装印刷电路板端子块由绿色聚酰胺 6.6 GF 制成，具有 M3 螺旋夹端子，并且接受 30 至 12 AWG 的电线尺寸范围。### TE Connectivity 5.0mm TERMI-BLOK 印刷电路板端子块连接器

TERMI-BLOK 系列 5mm 印刷电路板端子块，带互锁

TERMI-BLOK 5mm 印刷电路板端子块，具有侧面线接入、板联锁功能和测试功能。 这些 5mm TERMI-BLOK 垂直安装印刷电路板端子块由绿色聚酰胺 6.6 GF 制成，具有 M3 螺旋夹端子，并且接受 30 至 12 AWG 的电线尺寸范围。

### TE Connectivity 5.0mm TERMI-BLOK 印刷电路板端子块

得捷:
TERM BLK 2POS SIDE ENTRY 5MM PCB

欧时:
### TE Connectivity TERMI-BLOK 系列 5mm 印刷电路板端子块，带互锁TERMI-BLOK 5mm 印刷电路板端子块，具有侧面线接入、板联锁功能和测试功能。 这些 5mm TERMI-BLOK 垂直安装印刷电路板端子块由绿色聚酰胺 6.6 GF 制成，具有 M3 螺旋夹端子，并且接受 30 至 12 AWG 的电线尺寸范围。### TE Connectivity 5.0mm TERMI-BLOK 印刷电路板端子块连接器

立创商城:
796683-2

e络盟:
线至板接线端子, 2 路, 300 V, 17.5 A, 30 AWG, 12 AWG, 3 mm²

艾睿:
Say goodbye to wires becoming undone by using this eurostyle block 796683-2 PCB terminal block developed by TE Connectivity. Its pitch is 5 mm. It has a maximum voltage rating of 300 VAC. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 17.5 A/contact. 796683-2 is housed in polyamide 6/6. This product is 10 mm long, 15.2 mm tall and 9 mm deep. Its wire is 12-30 AWG. This quick disconnect terminal has an operating temperature of -40 to 105 °C. It uses the solder termination method.

安富利:
Conn Terminal Block 2 POS 5mm Solder ST Thru-Hole 17.5A/Contact

Chip1Stop:
Conn Terminal Block 2 POS 5mm Solder ST Thru-Hole 17.5A/Contact

Verical:
Conn Eurostyle Block HDR 2 POS 5mm Solder ST Thru-Hole 17.5A/Contact

MASTER:
TERMINAL BLOCK PCB MOUNT W/INTERLOCK, 5.00mm PITCH

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK PCB MOUNT 90 2P.

Electro Sonic:
TERMI-BLOK PCB MOUNT 90 2P.
