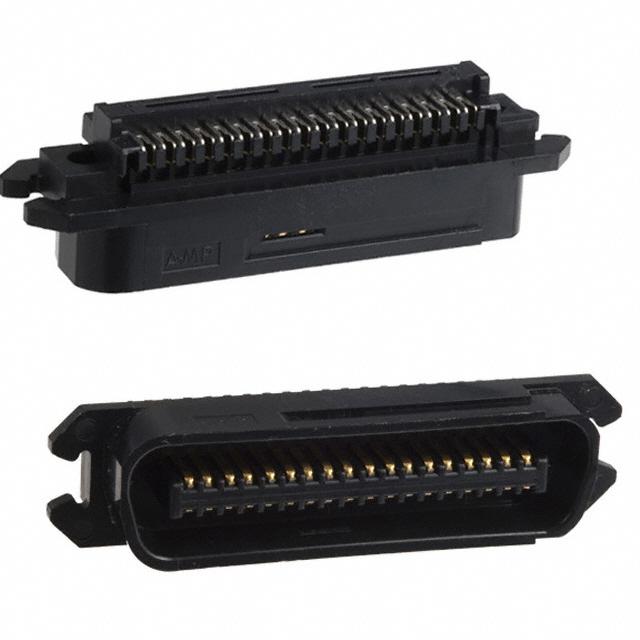

552274-1

TE Connectivity CHAMP IDC 电缆连接器一系列 CHAMP 电缆安装 IDC 连接器。 有关匹配的印刷电路板安装 CHAMP 连接器，请参见库存号： 680-8728，用于 0.8 mm 中心线。 719-4442，用于 1.27 mm 中心线 823-6926，用于 2.16 mm 中心线### D 型附件 - TE Connectivity

CHAMP IDC 电缆

一系列 CHAMP 电缆安装 IDC 连接器。

有关匹配的印刷电路板安装 CHAMP 连接器，请参见库存号：

680-8728，用于 0.8 mm 中心线。

719-4442，用于 1.27 mm 中心线

823-6926，用于 2.16 mm 中心线

得捷:
CONN PLUG 36POS STR IDC

欧时:

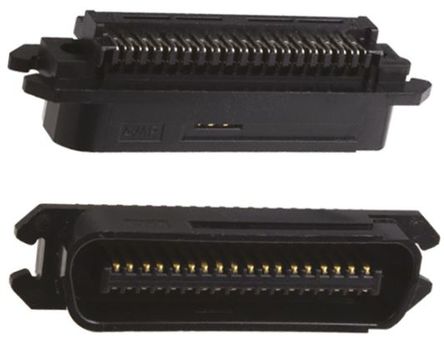

TE Connectivity CHAMP-LOK 系列 2行 36路 2.159mm节距 公 IDC 连接器 552274-1, 电缆安装

贸泽:
I/O Connectors PLUG 36P BAIL LOCK 24-26 AWG

e络盟:
绝缘压穿 IDC 连接器

艾睿:
The ieee 488 552274-1 interface connector from TE Connectivity is ideal for input/output circuits. This PL connector&s;s 36 contacts that are made out of copper alloy and plated with gold over nickel|gold over palladium nickel over nickel. It has a plug type gender. This connector has a single port. It has a right angle body orientation. Its pitch is 2.16 mm. 552274-1 is housed in thermoplastic. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 62.53 mm long, 17.39 mm tall and 15.24 mm deep. Its 36 terminals use the idt termination method.

安富利:
Conn IEEE 488 PL 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray

Chip1Stop:
Conn IEEE 488 PL 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray

Verical:
Conn IEEE 488 PL 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Box/Tray

Newark:

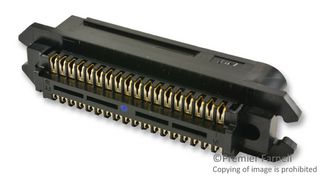

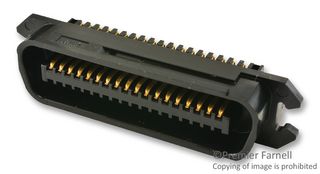

# AMP - TE CONNECTIVITY  552274-1  I/O Connector, 36 Contacts, Plug, Micro D, IDC / IDT, CHAMP Series, Cable Mount

MASTER:
ASSEMBLY, PLUG, 36 POSITION, B SLOT CHAMP-LOK, BAIL-LOCK

Powell:
2.16 [.085] IDC Connectors

ICbanQ:
36 CONTACTS, PLUG, CHAMP, BAIL

Electro Sonic:
ASSY, PLUG, 36 POS, B SLOT
