5745782-4

AMP FROM TE CONNECTIVITY  5745782-4  连接器, D-SUB

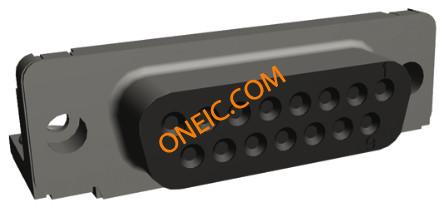

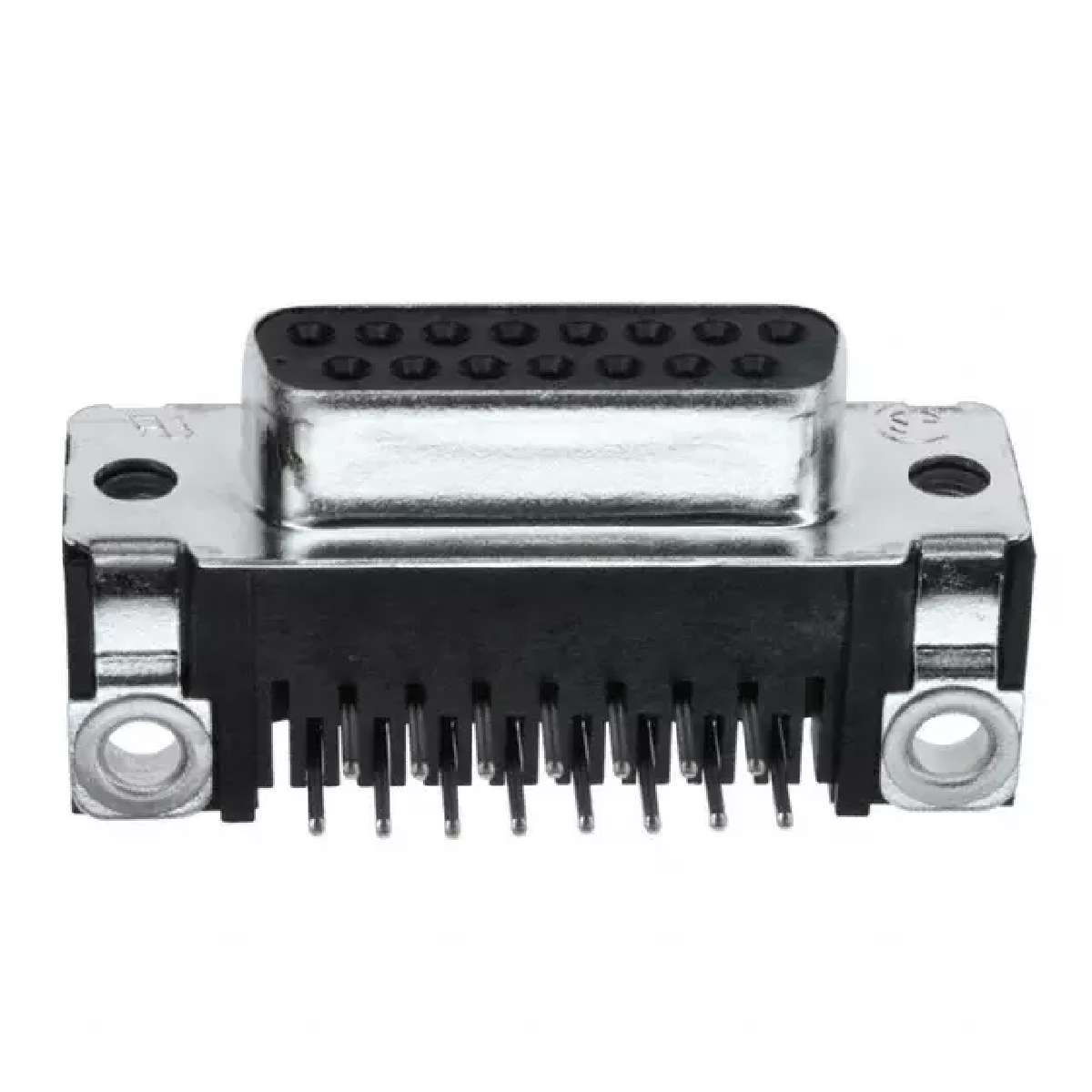

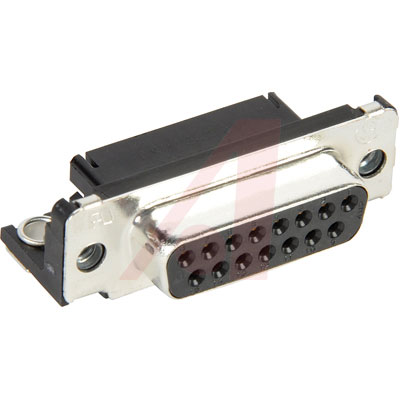

15 位 D-Sub 插座，母型插口

欧时:
AMPLIMITE HD-20 D-Sub 印刷电路板插

得捷:
CONN D-SUB RCPT 15POS R/A SLDR

贸泽:
D-Sub标准连接器 RECP FRNT MTL SHL 15

e络盟:
连接器, D-SUB

艾睿:
The 5745782-4 DVI connector from TE Connectivity is perfect for communicating between serial connections with minimal interference. It has a right angle body orientation. Its pitch is 2.74 mm. This socket type connector&s;s 15 contacts that are made out of phosphor bronze and plated with gold over nickel. This 2-row connector has a single port. It has a maximum voltage rating of 125 VDC|125VAC. 5745782-4 is housed in thermoplastic. This DVI connector has an operating temperature of -55 to 105 °C. This product is 39.14 mm long, 12.55 mm tall and 18.8 mm deep. Its 15 terminals use the solder termination method.

Allied Electronics:
Conn; D-Sub; PCB Socket; 15Pos; RTAng; HD-20Series; 20AWG; FrontMetalShell

安富利:
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port

Chip1Stop:
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Tray

Verical:
Conn D-Subminiature SKT 15 POS 1.37mm Solder RA Thru-Hole 15 Terminal 1 Port Tray

Newark:
# AMP - TE CONNECTIVITY  5745782-4  Standard D Sub Connector, 15 Contacts, Receptacle, DA, AMPLIMITE HD-20 Series, Metal Body, Solder

MASTER:
15 Position D-Sub Receptacle, Female Sockets Connector

Powell:
Standard Board Mount Connectors

Electro Sonic:
15 Position D-Sub Receptacle, Female Sockets Connector
