931825102

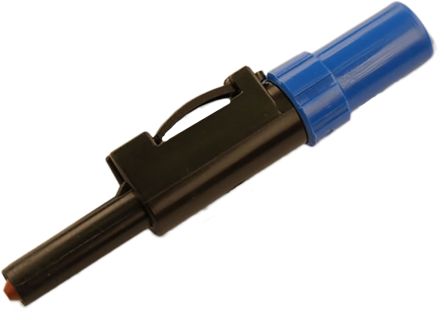

931825102图片1
931825102图片2
931825102概述

SLS 10B Hirschmann I 类 4mm 电缆插头Hirschmann 4mm I 类,安全电缆插头,通过卡合和绝缘套管提供安全触摸和完全绝缘,该套管仅通过向侧面锁定弹簧施加压力来释放。 镀镍触点弹簧由铍铜制成。 最大螺钉连接 2.5 mm2。### 特点额定值为 16A 30V 交流/60V 直流 CAT I 镀镍黄铜 5 mΩ 触点电阻 温度范围 -25 至 +70° C ### 4 mm Hirschmann技术参数 --- 触点材料 | 镀镍黄铜 额定电压 | 60Vdc(除非另有说明) 额定电流 | 16A(除非另有说明)

Touch protected plug to assemble with screw connection for cables up to 1.5mm². Insulated by latching and sprung insulating sleeve, to be released by pressure on the lateral locking spring. plug with contact spring, 4mm diameter.
.
Apply to this typ 150 VDC, CAT II; according IEC / EN 61010-031 item 6.4.2; allowed for devices that are equipped with terminals which cannot accept fully shrouded connectors.
.
4 mm sliding sleeve system
.
Plugs
.
Screw terminal connection
.
30 VAC / 60 VDC rated voltage 1
.
O 3 measurement cat. acc. to IEC 61010
.
16 A rated current 1
.
POM housing material
.
1 for normal environmental conditions -5°C to +40°C
.
3 without rated measurement category, for other circuits that are not directly connected to mains
931825102中文资料参数规格
技术参数

额定电流 16 A

额定电压 30VAC, 60VDC

外形尺寸

长度 67 mm

物理参数

颜色 Blue

触点材质 Brass

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买931825102
型号: 931825102
制造商: Hirschmann
描述:SLS 10B Hirschmann I 类 4mm 电缆插头 Hirschmann 4mm I 类,安全电缆插头,通过卡合和绝缘套管提供安全触摸和完全绝缘,该套管仅通过向侧面锁定弹簧施加压力来释放。 镀镍触点弹簧由铍铜制成。 最大螺钉连接 2.5 mm2。 ### 特点 额定值为 16A 30V 交流/60V 直流 CAT I 镀镍黄铜 5 mΩ 触点电阻 温度范围 -25 至 +70° C ### 4 mm Hirschmann 技术参数 --- 触点材料 | 镀镍黄铜 额定电压 | 60Vdc(除非另有说明) 额定电流 | 16A(除非另有说明)
