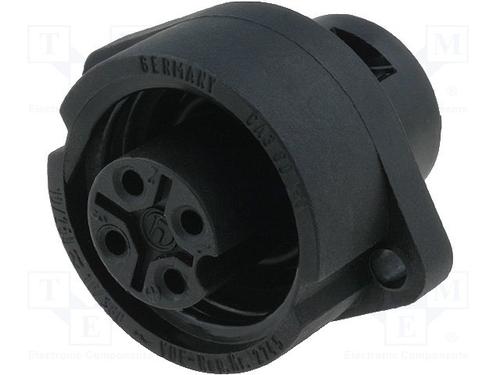

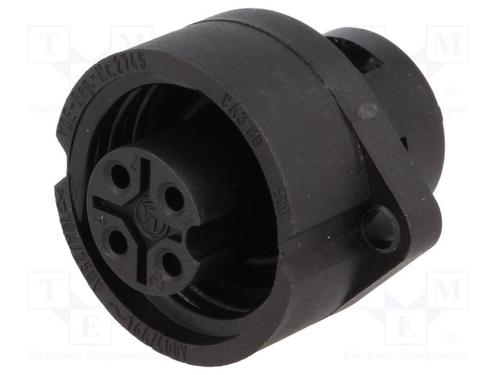

932321100 CA 3 GD中文资料参数规格
物理参数
工作温度 -40℃ ~ 90℃
其他
Type of connector circular
Operating temperature -40...90°C
IP rating IP67
Connector series CA
Locking system threaded joint, internal thread
Connector socket
Kind of connector female
Rated voltage 400V
Operating current 16A
Type of pin configuration 3+PE
Wire cross section 2.5mm2
Electrical mounting screw terminal
Mechanical mounting flange 2 holes, for panel mounting
Cable external diameter 6...12mm
Number of pins 4 3+1
符合标准
RoHS标准 RoHS Compliant
