ON SEMICONDUCTOR NTD5867NLT4G 晶体管, MOSFET, N沟道, 20 A, 60 V, 0.026 ohm, 10 V, 1.8 V
N 通道功率 MOSFET,60V,
欧时:

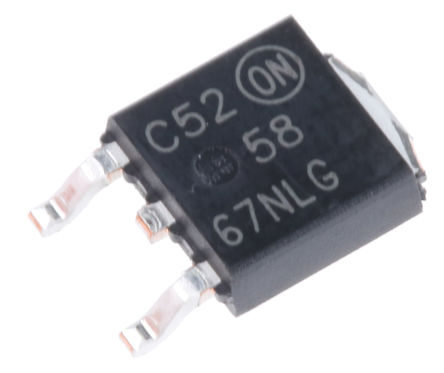

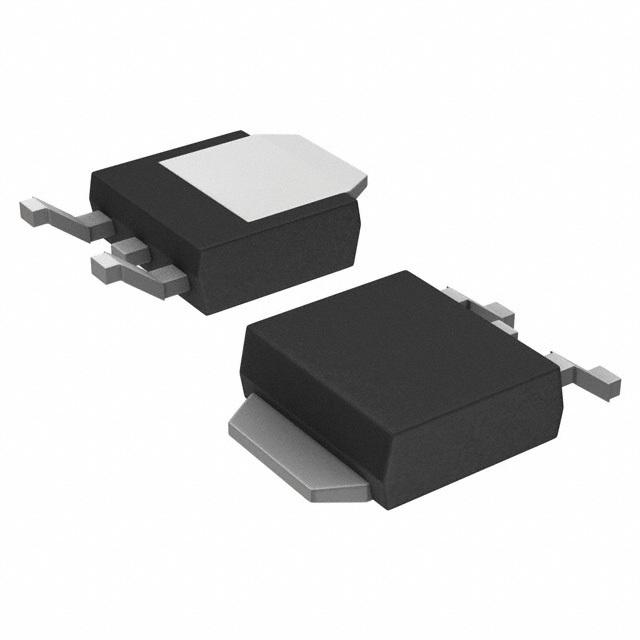

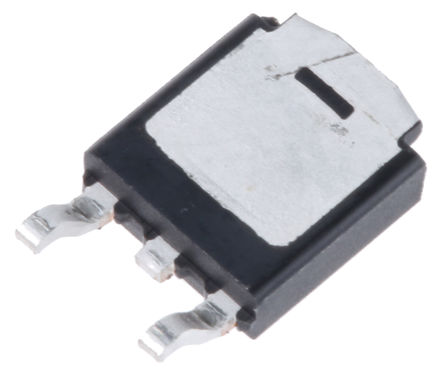

ON Semiconductor Si N沟道 MOSFET NTD5867NLT4G, 20 A, Vds=60 V, 3引脚 DPAK TO-252封装
立创商城:
N沟道 60V 20A
得捷:
MOSFET N-CH 60V 20A DPAK
贸泽:
MOSFET NFET DPAK 60V 18A 43 MOHM
e络盟:
晶体管, MOSFET, N沟道, 20 A, 60 V, 0.026 ohm, 10 V, 1.8 V
艾睿:
Thanks to ON Semiconductor, both your amplification and switching needs can be taken care of with one component: the NTD5867NLT4G power MOSFET. Its maximum power dissipation is 36000 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This N channel MOSFET transistor operates in enhancement mode.
Allied Electronics:
NTD5867NLT4G N-channel MOSFET Transistor; 20 A; 60 V; 3-Pin DPAK
安富利:
Trans MOSFET N-CH 60V 20A 3-Pin2+Tab DPAK T/R
Chip1Stop:
Trans MOSFET N-CH 60V 20A 3-Pin2+Tab DPAK T/R
TME:
Transistor: N-MOSFET; unipolar; 60V; 20A; 36W; DPAK
Verical:
Trans MOSFET N-CH 60V 20A 3-Pin2+Tab DPAK T/R
Newark:
MOSFET Transistor, N Channel, 20 A, 60 V, 0.026 ohm, 10 V, 1.8 V
力源芯城:
60V,19A,N沟道MOSFET
DeviceMart:
MOSFET N-CH 60V 18A 43MOHM DPAK
Win Source:
MOSFET N-CH 60V 20A DPAK
通道数 1
针脚数 3
漏源极电阻 0.026 Ω
极性 N-Channel
耗散功率 36 W
阈值电压 1.8 V
输入电容 675 pF
漏源极电压Vds 60 V
漏源击穿电压 60 V
上升时间 12.6 ns
输入电容Ciss 675pF @25VVds
额定功率Max 36 W
下降时间 2.4 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 36W Tc
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 6.73 mm
宽度 6.22 mm
高度 2.38 mm
封装 TO-252-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, 工业, Industrial, 便携式器材, 电机驱动与控制, LED Lighting, Consumer Electronics, Portable Devices, 电源管理, Motor Drive & Control, 消费电子产品, 发光二极管照明
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NTD5867NLT4G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
NTD20N06LT4G 安森美 | 类似代替 | NTD5867NLT4G和NTD20N06LT4G的区别 |
NTD20N06T4G 安森美 | 类似代替 | NTD5867NLT4G和NTD20N06T4G的区别 |
NTD20N06G 安森美 | 类似代替 | NTD5867NLT4G和NTD20N06G的区别 |
