2SC4617

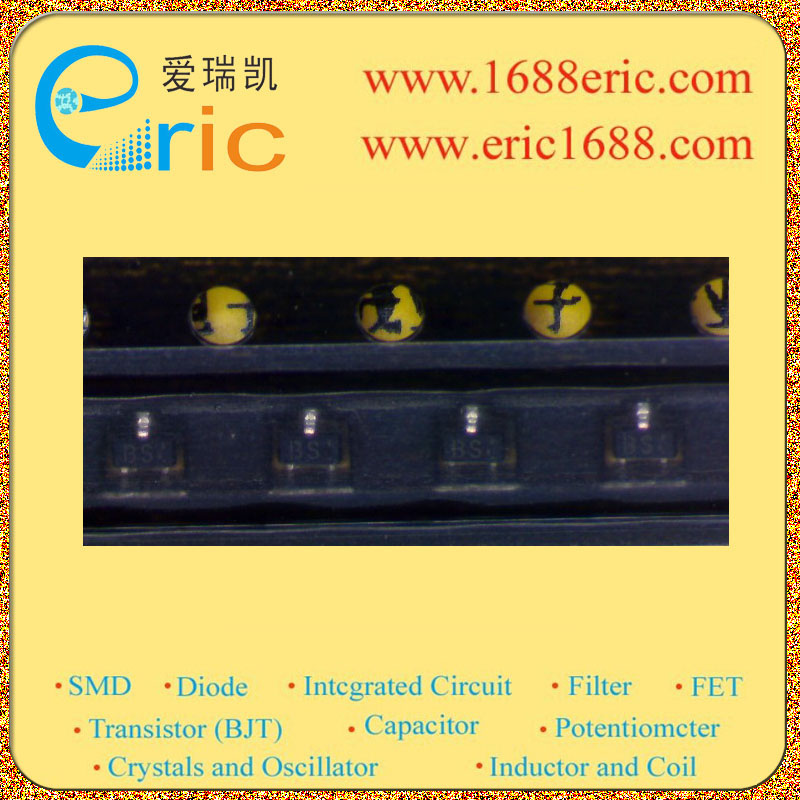

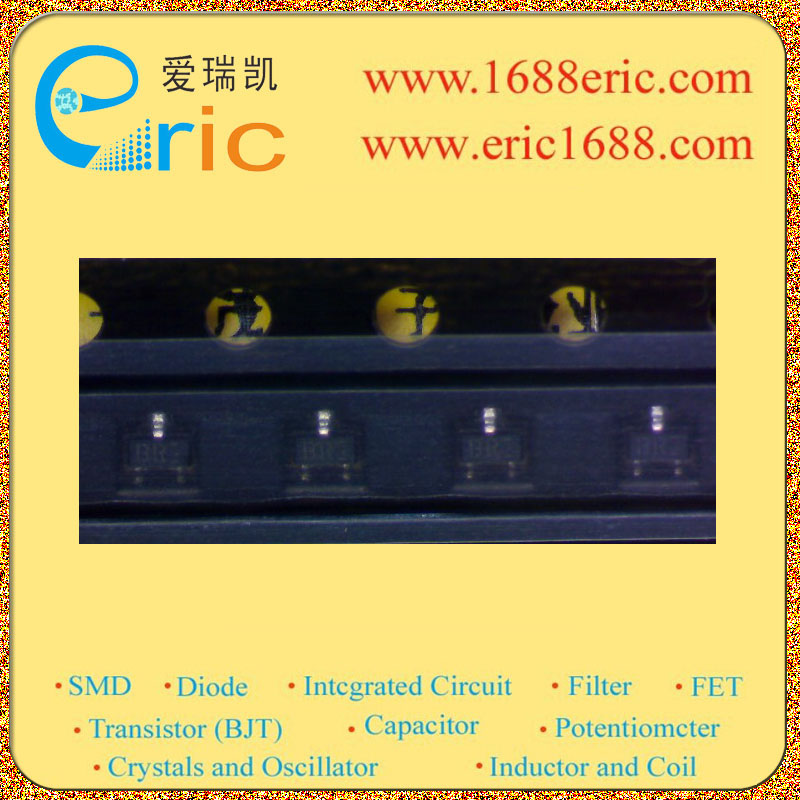

2SC4617 NPN三极管 60V 150mA/0.15A 180MHz 270~560 400mV/0.4V SOT-523/SC75A/EMT3 marking/标记 BS

集电极-基极反向击穿电压VBRCBOCollector-Base VoltageVCBO | 60V \---|--- 集电极-发射极反向击穿电压VBRCEOCollector-Emitter VoltageVCEO | 50V 集电极连续输出电流ICCollector CurrentIC | 150mA/0.15A 截止频率fTTranstion FrequencyfT | 180MHz 直流电流增益hFEDC Current GainhFE | 120~270 管压降VCE（sat）Collector-Emitter Saturation Voltage | 400mV/0.4V 耗散功率PcPower Dissipation | 150mW/0.15W Description & Applications | General purpose transistor Low Cob Cob=2.0pF Epitaxial planar type NPN silicon transistor 描述与应用 | 通用 低COB COB=2.0PF 外延平面型 NPN硅晶体管
