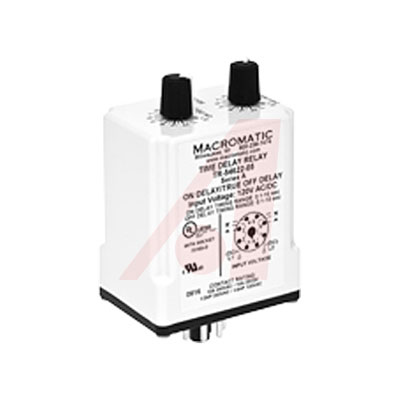

RELAY; E-Mech, Time Delay, Delayed Interval, 120VAC/DC 10A DPDT, FXD 10SC
Macromatic’s TR-5 Series Time Delay Relays provide onboard & remote adjustable or fixed time delays. They are available in many functions.
* Delayed Interval Switch Trigger
* t1 Fixed at 10 Sec, t2 Fixed at 2 Hour
* Used industry-standard 11 pin octal socket
* Pilot Duty Rating
Specifications
* DPDT 10A @ 240VAC/DC
* Temperature: –28°C to 65°C
* Dimensions: 3.5" D × 1.7" W × 2.4" H
Description of Function:
Upon application of input voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the time delay t1 begins. At the end of the time delay t1, the output is energized and remains in that condition for the time delay t2. At the end of the time delay t2, the output is de-energized & the relay is ready to accept another trigger. During both time delay t1 & time delay t2, the trigger is ignored.
