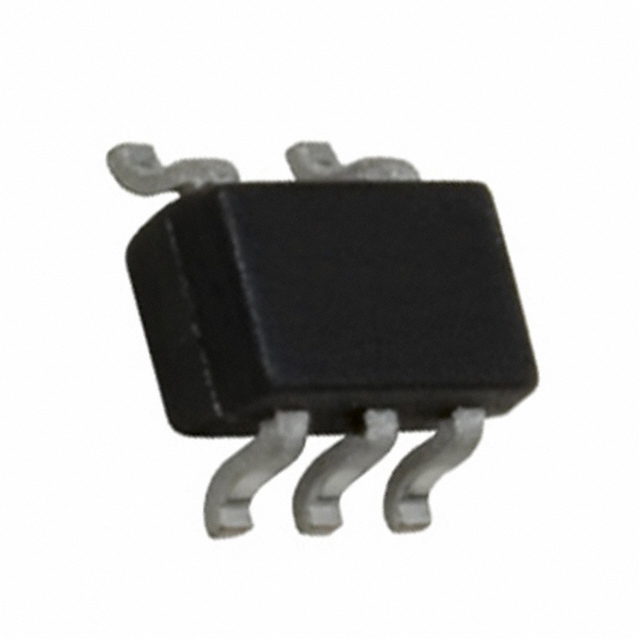

TinyLogic ULP 2输入与非门 TinyLogic ULP 2-Input NAND Gate
Now you can design fundamental logical circuits using some of Semiconductor"s logic gates! This gate has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.9 V, while its maximum is 3.6 V.
电源电压DC 1.20 V
输出接口数 1
输出电流 2.6 mA
电路数 1
通道数 2
逻辑门个数 1
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.9V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 0.9 V
安装方式 Surface Mount
引脚数 5
封装 SC-70-5
长度 2 mm
宽度 1.25 mm
高度 1 mm
封装 SC-70-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
NC7SP00P5X Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
SN74AUP1G00DCKR 德州仪器 | 功能相似 | NC7SP00P5X和SN74AUP1G00DCKR的区别 |
SN74AUP1G00DCKT 德州仪器 | 功能相似 | NC7SP00P5X和SN74AUP1G00DCKT的区别 |
SN74AUP1G00DCKRG4 德州仪器 | 功能相似 | NC7SP00P5X和SN74AUP1G00DCKRG4的区别 |
