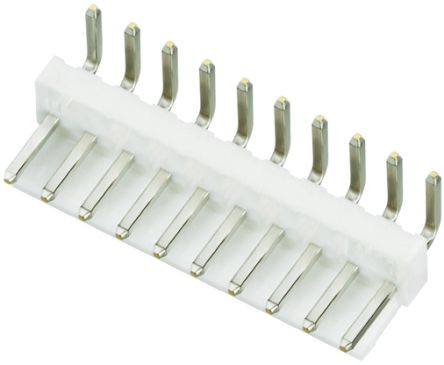

B10PS-VH LFSN概述

VH Series HeadersThese VH Series of Wire to Board, 3.96 mm pitch, Through Hole Connectors from JST are suitable for use in a signal, power supply or output circuit applications. The compact size and large capacity coupled with secure locking contact and mounting are the special features of these VH Series of Wire to Board, 3.96 mm pitch, Through Hole Connectors. The Headers of the VH Series are suitable for 1.6mm thick PCBs. The above board heights of the mated VH Series connectors are 16.5 mm for the Top Entry and 10.5 mm for the Side Entry type.Temperature range: -25 → 85 °C Header material: PA66 UL94V-0, natural ### 注Mates with VH Series Crimp Housings, see stock number 762-0746 typical.### JST VH 连接器 3.96mm 节距JST VH 连接器系列是线对板 3.96 mm 节距可断开压接系统。 这些 JST VH 连接器的设计包括不可锁定摩擦锁定,提供牢固接触和安装。 JST VH 连接器系列的大电流载流量使其可用于各种信号、电源和输出电路应用。

VH 系列管座

VH 系列是 公司生产的间距为 3.96 mm 的线对板通孔式,适用于信号、电源或输出电路等应用。紧凑的外形、出色的容量以及牢固的锁定式触点和安装座是 VH 系列间距为 3.96 mm 的线对板通孔式连接器的特点。VH 系列管座适用于厚 1.6mm 的印刷电路板。VH 系列连接器插接后的板上高度为 16.5mm(顶部接入式)或 10.5mm(侧面接入式)。

温度范围: -25→85°C

管座材料:PA66 UL94V-0,天然

### 注

可与 VH 系列压接外壳配合使用,请参见库存号 762-0746(典型)。

B10PS-VH LFSN中文资料参数规格
技术参数

触点数 10

极性 Male

触点电镀 Tin

额定电流 10 A

排数 1

针脚数 10

额定电压 250VAC, 250VDC

封装参数

安装方式 Through Hole

引脚间距 3.96 mm

外形尺寸

长度 39.5 mm

宽度 9.40 mm

高度 8.50 mm

引脚间距 3.96 mm

物理参数

外壳颜色 Natural

触点材质 Brass

外壳材质 Nylon

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

在线购买B10PS-VH LFSN
型号: B10PS-VH LFSN
制造商: JST 日本压着端子
描述:VH Series Headers These VH Series of Wire to Board, 3.96 mm pitch, Through Hole Connectors from JST are suitable for use in a signal, power supply or output circuit applications. The compact size and large capacity coupled with secure locking contact and mounting are the special features of these VH Series of Wire to Board, 3.96 mm pitch, Through Hole Connectors. The Headers of the VH Series are suitable for 1.6mm thick PCBs. The above board heights of the mated VH Series connectors are 16.5 mm for the Top Entry and 10.5 mm for the Side Entry type. Temperature range: -25 → 85 °C Header material: PA66 UL94V-0, natural ### 注 Mates with VH Series Crimp Housings, see stock number 762-0746 typical. ### JST VH 连接器 3.96mm 节距 JST VH 连接器系列是线对板 3.96 mm 节距可断开压接系统。 这些 JST VH 连接器的设计包括不可锁定摩擦锁定,提供牢固接触和安装。 JST VH 连接器系列的大电流载流量使其可用于各种信号、电源和输出电路应用。
