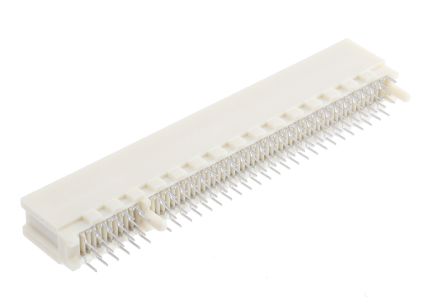

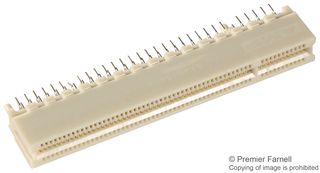

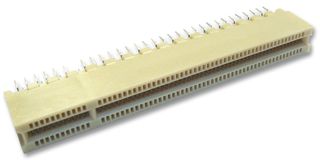

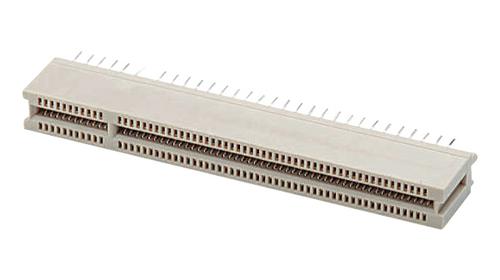

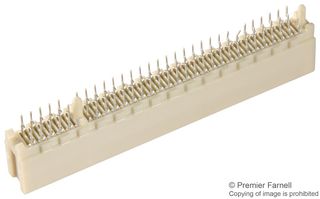

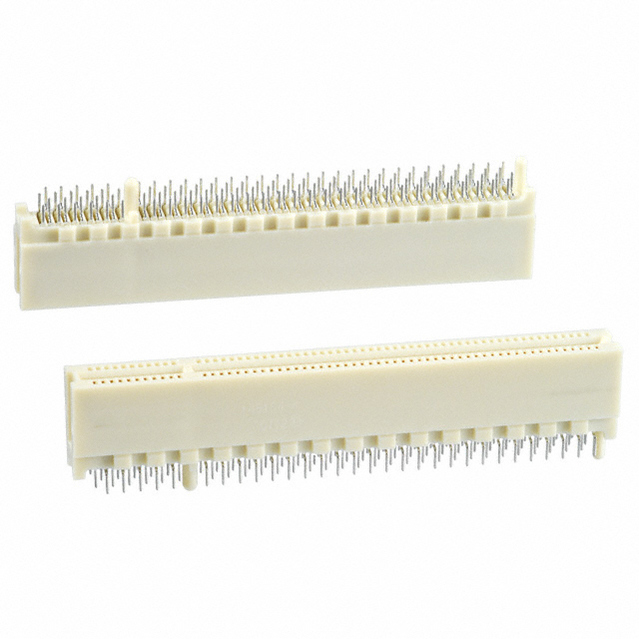

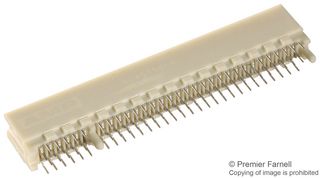

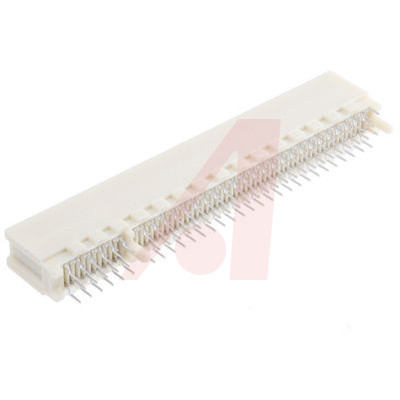

5145154-4

AMP FROM TE CONNECTIVITY  5145154-4  连接器, PCI系列, 矩形电源, 120 触点, 插座, 1.27 mm, 通孔安装

1.27mm PCI 板边

PCI 印刷电路板安装板边连接器，具有 1.27mm 节距。 这些 PCI 印刷电路板安装板边连接器提供 32 位或 64 位（库存号 745-5703 和 864-3829）总线宽度，由白色热塑性材料制成，带压制架线塔，以帮助固定印刷电路板（库存号 745-5703 和 864-3829 具有 3 个架线塔，其他的具有 2 个）。

### 存储卡连接器

得捷:
CONN PCI CARDEDGE FML 120P 0.050

欧时:
### TE Connectivity 1.27mm PCI 板边连接器PCI 印刷电路板安装板边连接器，具有 1.27mm 节距。 这些 PCI 印刷电路板安装板边连接器提供 32 位或 64 位（库存号 745-5703 和 864-3829）总线宽度，由白色热塑性材料制成，带压制架线塔，以帮助固定印刷电路板（库存号 745-5703 和 864-3829 具有 3 个架线塔，其他的具有 2 个）。### 存储卡连接器提供多个市场领先制造商的多种存储卡和 PCMCIA 卡连接器。 电流额定值 0.5A产品组合表 |   |   |   |   |   |   |   ---|---|---|---|---|---|---|--- 应用 | 极数 | 离心度 | 框架 套件 | 68 引脚 插座 | 后面 连接器 | 插头 单位 | 插头 外罩 通用 类型 | 15 | 0.9 | NX1-15T-KT9K | IC1K-68RD-1.27SFA | NX60TB-15SAA9-SP | NX30TA-15PAA | NX-15T-CV   | 15 | 0.3 | NX1-15T-KT3K | IC1K-68RD-1.27SF | NX60TB-15SAA3-SP | NX30TA-15PAA | NX-15T-CV   | 25 | 0.9 | NX1-25T-KT9K | IC1K-68RD-1.27SFA | NX60TA-25SAA9-SP | NX30TA-25PAA | NX-25T-CV   | 25 | 0.3 | NX1-25T-KT3K | IC1K-68RD-1.27SF | NX60TA-25SAA3-SP | NX30TA-25PAA | NX-25T-CV   | 32 | 0.9 | NX1-32T-KT9K | IC1K-68RD-1.27SFA | NX60T-32SAA9-SP | NX30TA-32PAA | NX-32TA-CV1   | 32 | 0.3 | NX1-32T-KT3K | IC1K-68RD-1.27SF | NX60TA-32SAA3-SP | NX30TA-32PAA | NX-32TA-CV1 卡 总线 类型 | 15 | 0.9 | NX1BL-15T-KT9B | IC9-68RD-0.635SFA | NX60TB-15SAA9-SP | NX30TA-15PAA | NX-15T-CV   | 15 | 0.3 | NX1BL-15T-KT3B | IC9-68RD-0.635SF | NX60TB-15SAA3-SP | NX30TA-15PAA | NX-15T-CV   | 25 | 0.9 | NX1BL-25T-KT9B | IC9-68RD-0.635SFA | NX60TA-25SAA9-SP | NX30TA-25PAA | NX-25T-CV   | 25 | 0.3 | NX1BL-25T-KT3B | IC9-68RD-0.635SF | NX60TA-25SAA3-SP | NX30TA-25PAA | NX-25T-CV   | 32 | 0.9 | NX1BL-32T-KT9B | IC9-68RD-0.635SFA | NX60T-32SAA9-SP | NX30TA-32PAA | NX-32TA-CV1   | 32 | 0.3 | NX1BL-32T-KT3B | IC9-68RD-0.635SF | NX60TA-32SAA3-SP | NX30TA-32PAA | NX-32TA-CV1

立创商城:
5145154-4

贸泽:
PCI Express / PCI 连接器 PCI 60P DUAL 2.54mm 32 BIT

e络盟:
卡边连接器, 双侧, 1.57 mm, 120 触芯, 通孔安装, 直行, 焊接

艾睿:
Look no further than the pci express card edge 5145154-4 smart card connector from TE Connectivity, a connector that can essentially eliminate the need for an opposite male connector. This SKT connector&s;s 120 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a socket type gender. Its pitch is 1.27 mm. It has a maximum voltage rating of 203 VAC. It has a straight body orientation. This product is 15.49 mm tall. This device has a maximum current rating of 1 A/contact. It uses the solder termination method. This card edge connector has an operating temperature of -55 to 85 °C. 5145154-4 is housed in white polyamide 4/6.

Allied Electronics:
Card Edge Connector; Phosphor Bronze; Thermoplastic; White; 60; Gold

Jameco:
Connector PCI Express Card Edge Socket 120 Position 1.27 mm Solder Straight Thru-Hole Box

安富利:
Conn Card Edge SKT 120 POS 1.27mm Solder ST Thru-Hole

Chip1Stop:
Conn Card Edge SKT 120 POS 1.27mm Solder ST Thru-Hole

TME:
Connector: card edge; female; PIN:120; 1.27mm; gold-plated; THT

Verical:
Conn PCI Express Card Edge SKT 120 POS 1.27mm Solder ST Thru-Hole Box/Carton

Newark:
# AMP - TE CONNECTIVITY  5145154-4  Connector, PCI Series, Card Edge, 120 Contacts, Receptacle, 1.27 mm, Through Hole

MASTER:
CONNECTOR ASSEMBLY, 60 DUAL POSITION, 1.27 [.050] SERIES, CARD EDGE

Online Components:
CONNECTOR, 60 DUAL POSITION, .

Electro Sonic:
STANDARD EDGE .050 SERIES 60 DUAL ASSY
