集管和线壳 14 MODIV VRT DR CE 100/130
14 Position Receptacle, Bottom or Top Entry Connector Through Hole
得捷:
CONN RCPT 14POS 0.1 GOLD PCB
贸泽:
集管和线壳 14 MODIV VRT DR CE 100/130
艾睿:

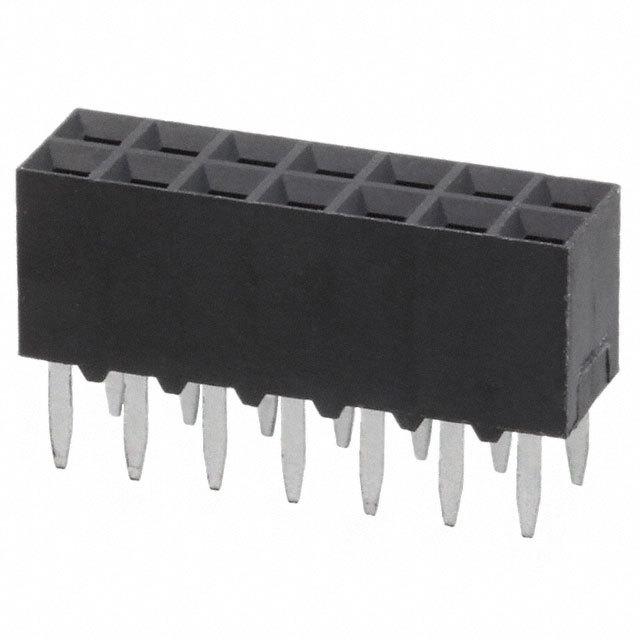

TE Connectivity brings you their socket strip 5-535542-7 header connector, an important safety tool for protecting your electronic components from accidental damage. This SKT connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. It has a straight body orientation. Its pitch is 2.54 mm. This is a 2-row connector. This device has a maximum current rating of 2 A/contact. This product is 17.78 mm long, 6.73 mm tall and 5.03 mm deep. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. 5-535542-7 is housed in black polychlorinated terphenyl.
安富利:
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes
Powell:
.100 inch AMPMODU Receptacles
Electro Sonic:
14 MODIV VRT DR CE 100/130
触点数 14
触点电镀 Gold, Tin over Nickel
额定电流 2 A
绝缘电阻 5000 MΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 14
额定电流Max 2A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 333 VAC
接触电阻Max 12 mΩ
安装方式 Through Hole
高度 6.73 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
5-535542-7 TE Connectivity 泰科 | 当前型号 | 当前型号 |
535542-7 泰科 | 功能相似 | 5-535542-7和535542-7的区别 |
