BTE-040-03-F-D-A-K-TR

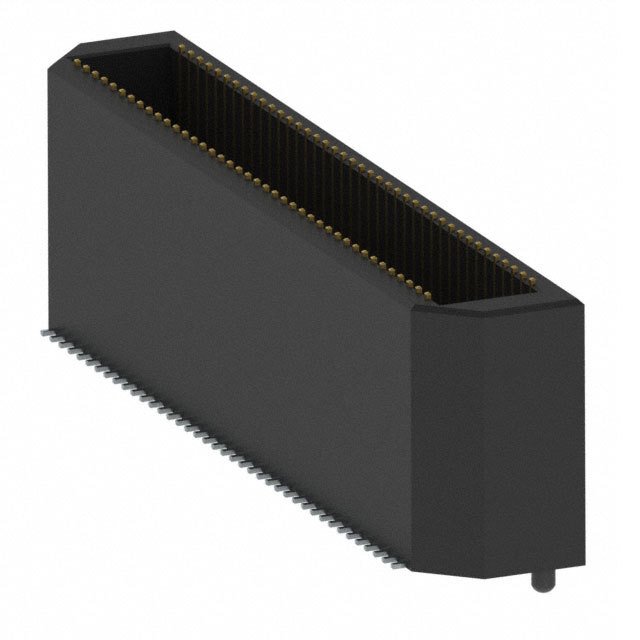

BTE-040-03-F-D-A-K-TR图片1
BTE-040-03-F-D-A-K-TR概述

Conn Micro Terminal HDR 80POS 0.8mm Solder ST SMD T/R

80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold


得捷:
CONN HDR 80POS SMD GOLD


艾睿:
Samtec&s;s micro terminal BTE-040-03-F-D-A-K-TR header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector&s;s 80 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 0.8 mm. This is a 2-row connector. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 225 VAC. This device has a maximum current rating of 2 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This connector has an operating temperature of -55 to 125 °C. BTE-040-03-F-D-A-K-TR is housed in liquid crystal polymer. This product is 36 mm long, 10.26 mm tall and 7.11 mm deep. It uses the solder termination method.


BTE-040-03-F-D-A-K-TR中文资料参数规格
技术参数

触点数 80

排数 2

针脚数 80

额定电流Max 2A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压Max 225 VAC

封装参数

安装方式 Surface Mount

外形尺寸

高度 10.26 mm

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

数据手册

在线购买BTE-040-03-F-D-A-K-TR
型号: BTE-040-03-F-D-A-K-TR
制造商: Samtec 申泰电子
描述:Conn Micro Terminal HDR 80POS 0.8mm Solder ST SMD T/R
