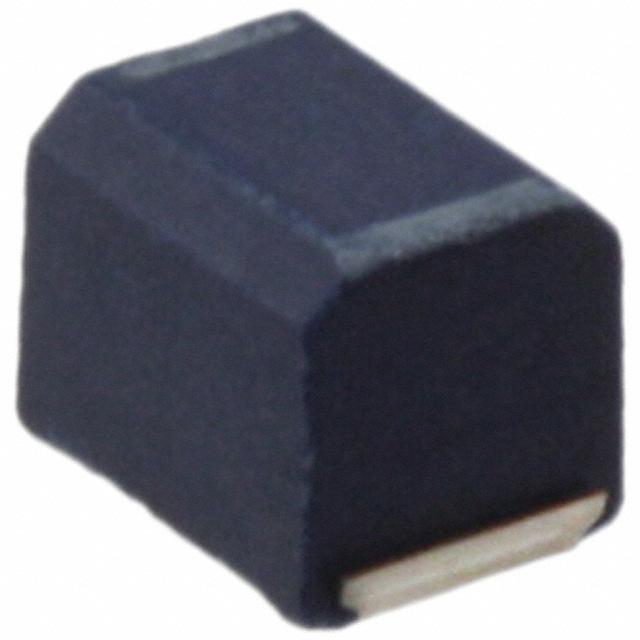

TDK NL453232T-151J-PF 表面贴装高频电感器, NL系列, 150 µH, ± 5%, 1812 [4532 公制], 5 MHz, 9 ohm
固定器
立创商城:
150uH ±5% 105mA 停产
得捷:
FIXED IND 150UH 105MA 9 OHM SMD
贸泽:
Fixed Inductors 150uH
e络盟:
高频电感器, 150 µH, NL系列, 105 mA, 1812 [4532 公制], 绕线, 9 ohm
艾睿:
Save valuable space on a PCB with this rf chip NL453232T-151J-PF surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 4.8 mm long, 3.4 mm tall and 3.4 mm deep. This SMD inductor has a maximum DC current of 105m A with a maximum resistance of 9 Ohm. This device is made with wirewound technology. It has a tolerance of 5%. It has an inductance of 150u H. Its test frequency is 796K Hz, while its minimum self-resonant frequency is 5M Hz.
安富利:
Ind General Purpose Chip Wirewound 150uH 5% 796KHz 40Q-Factor 105mA 1812 T/R
Verical:
Inductor RF Chip Unshielded Wirewound 150uH 5% 796KHz 40Q-Factor Ferrite 0.105A 9Ohm DCR 1812 T/R
Electro Sonic:
Inductor RF Chip Unshielded Wirewound 150uH 5% 796KHz 40Q-Factor Ferrite 105mA 9Ohm DCR 1812 T/R
Win Source:
FIXED IND 150UH 105MA 9 OHM SMD
额定电流 105 mA
容差 ±5 %
电感 150 µH
自谐频率 5 MHz
Q值 40.0
产品系列 NL
电感公差 ±5 %
测试频率 0.796 MHz
电阻DC) ≤9 Ω
额定电流DC 105 mA
工作温度Max 105 ℃
工作温度Min 40 ℃
精度 ±5 %
电阻DC Max 9 Ω
安装方式 Surface Mount
封装公制 4832
封装 1812
长度 4.5 mm
宽度 3.2 mm
高度 3.2 mm
封装公制 4832
封装 1812
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NL453232T-151J-PF TDK 东电化 | 当前型号 | 当前型号 |
CM453232-151JL 伯恩斯 | 功能相似 | NL453232T-151J-PF和CM453232-151JL的区别 |
ELJ-FB151JF 松下 | 功能相似 | NL453232T-151J-PF和ELJ-FB151JF的区别 |
