NC3MBH

XLR 连接器 3C MALE PCB

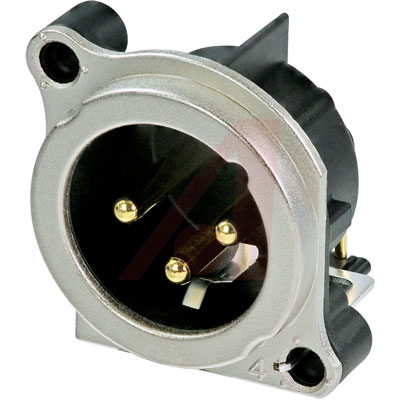

The B series XLR Audio Connector which is same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. Available as 3 pole female and male connectors including a special version with 8 ground contacts -E for best conductivity of mating shell to ground. UL recognized component.

立创商城:
NC3MBH

贸泽:
XLR 连接器 3C MALE PCB

艾睿:
Make your product&s;s components work properly with the xlr connector adapter NC3MBH audio and video connector from Neutrik® USA Inc.. This M connector&s;s 3 contacts that are made out of brass and plated with auco over nip15. It has a maximum voltage rating of 50 V. It has a male type gender. It has a right angle body orientation. This connector has a single port. This device has a maximum current rating of 6 A/contact. NC3MBH is housed in polyamide. This part has a minimum operating temperature of -30 °C and a maximum of 80 °C. This product is 25 mm long, 25 mm tall and 22.2 mm deep. Its 3 terminals use the solder termination method.

Allied Electronics:
XLR Connectors 3C MALE PCB

TME:
Socket; XLR; male; PIN:3; angled 90°; THT; silver; 6A; 19.8x19.8mm

Verical:
Conn XLR Connector Adapter M 3 POS Solder RA Thru-Hole 3 Terminal 1 Port

Newark:
XLR Audio Connector, 3 Contacts, Plug, PCB Mount, Gold Plated Contacts, Metal Body, B Series

MASTER:
B Series - 3 pole male XLR receptacle - grounding: separate ground contact to mating connector shell and front panel - steel retention lug - horizontal PCB mount Same as A series with exception of a metal mounting flange featuring continuous circumferen

Electro Sonic:
B Series - 3 pole male XLR receptacle - grounding: separate ground contact to mating connector shell and front panel ...
