MAC12SNG

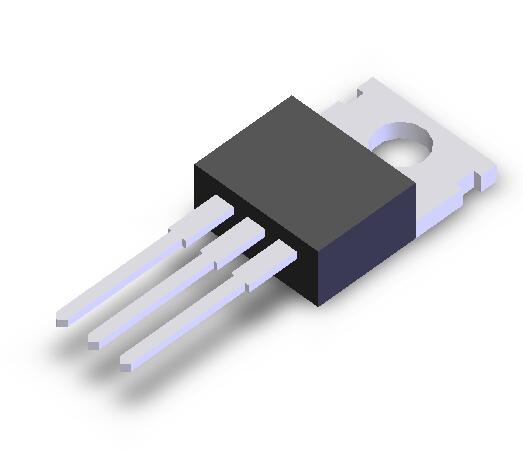

ON SEMICONDUCTOR  MAC12SNG  双向晶闸管, 800V, 12A, TO-220AB

The is a sensitive gate silicon bidirectional TRIAC designed for full wave control of AC loads.

.

Sensitive gate allows triggering by microcontrollers and other logic circuits

.

Blocking voltage to 800V

.

ON-state current rating of 12A RMS at 70°C

.

90A High surge current capability

.

Glass passivated junctions for reliability and uniformity

.

Maximum values of Igt, Vgt and Ih specified for ease of design

.

8A/ms Minimum at 110°C high commutating di/dt

.

15V/sec Minimum at 110°C immunity to dV/dt

.

Operational in three quadrants
