D38999/20JC35PN

环形MIL规格连接器 22P Sz 13 Wall Mount Recpt Pin Cont

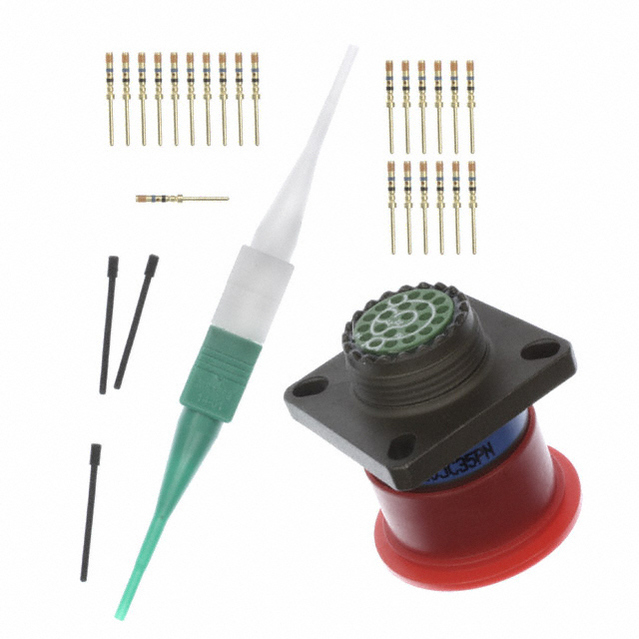

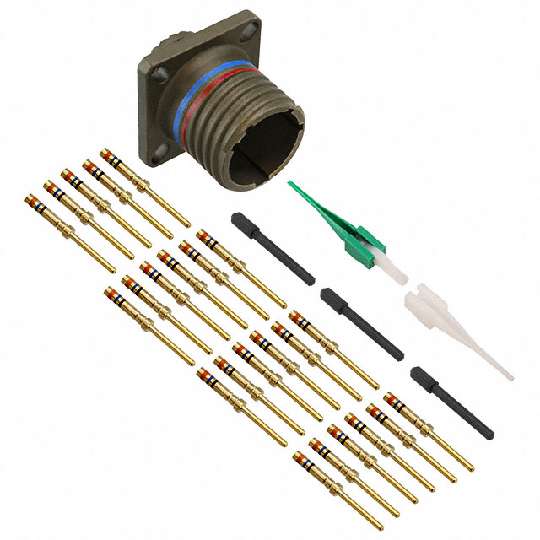

The from is MIL-DTL-38999 Series III Composite series square flange receptacle with 22 contacts. This connector offers high density contact arrangements in a miniature circular shell and combines high coupling durability. High performance contact retention system ensures high temperature withstanding and better retention characteristics than plastic clips. It is designed to withstand the extreme shock, exposure and vibration.

.

Resistance to fluids, quick screw coupling with self locking mechanism

.

Thermoplastic or thermoset insulator, silicone elastomer grommet and interfacial seal

.

Insulation resistance of >= 5000Mohm under 500VDC

.

100% scoop proof offering polarising options by angular positioning of keys

.

IP67 environmental protection

.

Durability of 500 mating cycles

.

Operating temperature range from -65°C to +175°C

.

Salt spray exposure of 2000hour

.

Composite body material with olive drab cadmium plating

.

Copper alloy crimp pin contacts with gold plating
