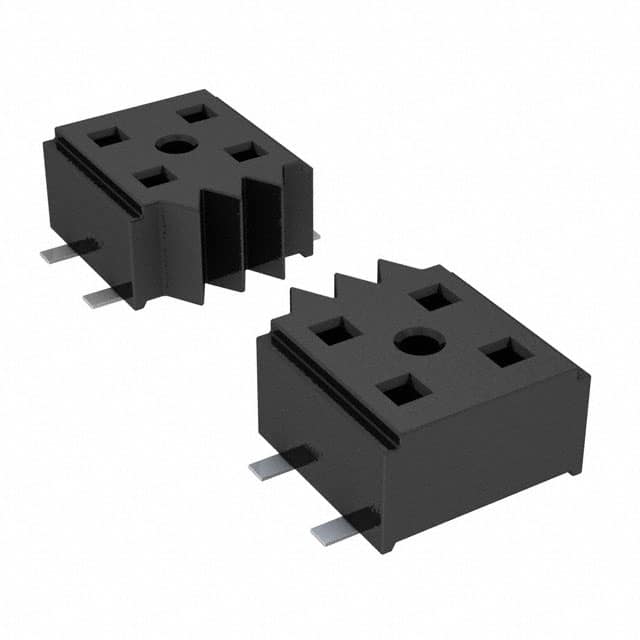

SAMTEC CLT-121-02-L-D-BE Board-To-Board Connector, 2mm, 42Contacts, Receptacle, CLT Series, Surface Mount, 2Rows
42 位置 插座，底部进入 0.079"（2.00mm） 表面贴装型 镀金
得捷:
CONN RCPT 42POS 0.079 GOLD SMD
艾睿:
Thanks to Samtec&s;s socket strip CLT-121-02-L-D-BE header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This SKT connector&s;s 42 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. It has a socket type gender. Its pitch is 2 mm. This device has a maximum current rating of 4.1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 42 mm long, 2.27 mm tall and 5.16 mm deep. It uses the solder termination method. CLT-121-02-L-D-BE is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C.
Newark:
# SAMTEC CLT-121-02-L-D-BE Board-To-Board Connector, 2 mm, 42 Contacts, Receptacle, CLT Series, Surface Mount, 2 Rows
