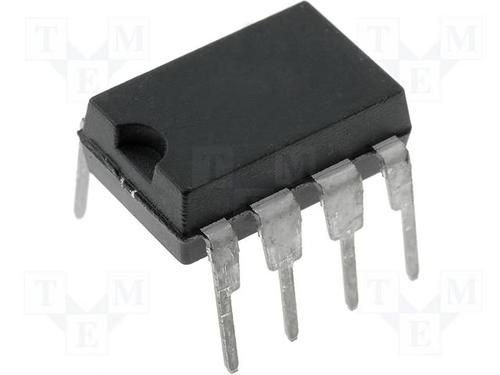

HCPL-4504-000E图片1

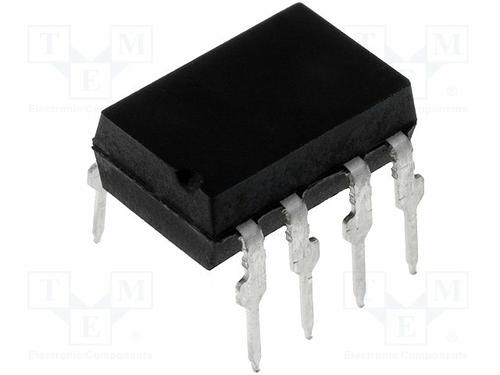

HCPL-4504-000E图片2
HCPL-4504-000E图片3
HCPL-4504-000E图片4
HCPL-4504-000E图片5
HCPL-4504-000E图片6
HCPL-4504-000E图片7
HCPL-4504-000E图片8
HCPL-4504-000E图片9
HCPL-4504-000E图片10
HCPL-4504-000E概述

高CMR高速光电耦合器

Description

The HCPL-4504 and HCPL-0454 contain a GaAsP LED while the HCPL-J454 and HCNW4504 contain an AlGaAs LED. The LED is optically coupled to an integrated high gain photo detector.

The HCPL-4504 series has short propagation delays and high CTR. The HCPL-4504 series also has a guaranteed propagation delay difference tPLH-tPHL. These features make the HCPL-4504 series an excellent solution to IPM inverter dead time and other switching problems. The CTR, propagation delay, and CMR are specified both for TTL and IPM conditions which are provided for ease of application.

Features

• Short propagation delays for TTL and IPM applications

• 15 kV/μs minimum Common Mode Transient immunity at VCM = 1500 V for TTL/load drive

• High CTR at TA = 25°C

   >25% for HCPL-4504/0454

   >23% for HCNW4504

   >19% for HCPL-J454

• Electrical specifications for common IPM applications

• TTL compatible

• Open collector output

• Safety approval:

   UL recognized

   – 3750 V rms/1min. for HCPL-4504/0454/J454

   – 5000 V rms/1min. for HCPL-4504 Option 020 and HCNW4504

   CSA approved

   IEC/EN/DIN EN 60747-5-2 approved

   – VIORM = 560 Vpeak for HCPL-0454 Option 060

   – VIORM = 630 Vpeak for HCPL-4504 Option 060

   – VIORM = 891 Vpeak for HCPL-J454

   – VIORM = 1414 Vpeak for HCNW4504



Applications

• Inverter circuits and Intelligent Power Module IPM interfacing: High Common Mode Transient immunity > 10 kV/μs for an IPM load/drive and tPLH - tPHL Specified see Power Inverter Dead Time section

• Line receivers: Short propagation delays and low in put-output capacitance

• High speed logic ground isolation: TTL/TTL, TTL/CMOS, TTL/LSTTL

• Replaces pulse transformers: Save board space and weight

• Analog signal ground isolation: Integrated photodetector provides improved linearity over phototransistors

HCPL-4504-000E中文资料参数规格
技术参数

输入电压DC 1.50 V

输出电压 20 V

电路数 1

通道数 1

输入电流 16 mA

隔离电压 3.75 kV

正向电流Max 25 mA

工作温度Max 70 ℃

工作温度Min 0 ℃

电源电压Max 30 V

封装参数

安装方式 Through Hole

引脚数 8

封装 DIP-8

外形尺寸

宽度 6.35 mm

封装 DIP-8

物理参数

工作温度 0℃ ~ 70℃

其他

产品生命周期 Unknown

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2014/12/17

数据手册

在线购买HCPL-4504-000E
型号: HCPL-4504-000E
制造商: AVAGO Technologies 安华高科
描述:高CMR高速光电耦合器
替代型号HCPL-4504-000E
型号/品牌 代替类型 替代型号对比

HCPL-4504-000E

AVAGO Technologies 安华高科

当前型号

当前型号

HCPL-0500-000E

博通

功能相似

HCPL-4504-000E和HCPL-0500-000E的区别

HCPL-0501-000E

博通

功能相似

HCPL-4504-000E和HCPL-0501-000E的区别
