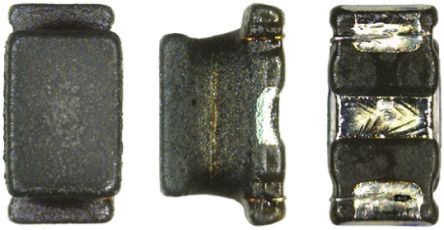

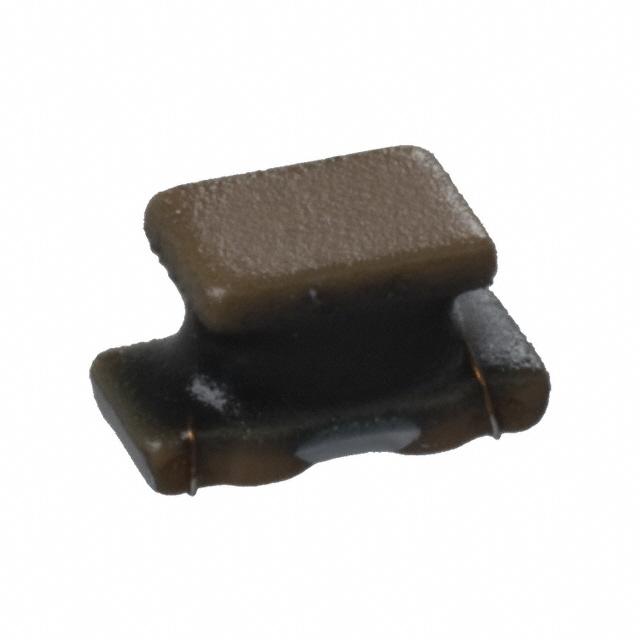

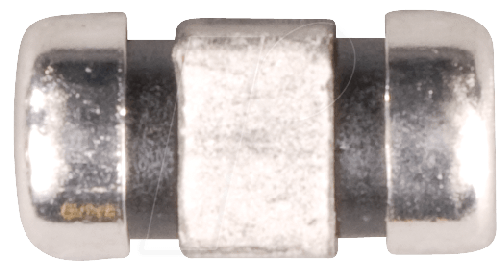

MURATA NFW31SP106X1E4L 滤波器 芯片式
EMI 滤波器电路
得捷:
FILTER LCPI 10MHZ SMD
欧时:
### 1206 EMIFIL® LC Combined Wire Wound Type NFW31S SeriesNFW31S series high performance signal line chip EMI filters designed for noise suppression in high speed signal digital circuits in which the signal harmonics are prone to becoming noise sources. These filters achieve a 100dB/dec. typ. damping characteristic with Murata"s innovative circuit design, making these chips effective in applications where the signal and noise frequencies are close to each other. Suppresses signal noise with little or no attenuation of the signal itself Murata"s original internal structure design enables excellent noise suppression up to high frequencies 40dB at 1GHz typ. ### 信号/线路/杂讯和馈通 - SMT### 信号/线路/杂讯和馈通 - 印刷电路板安装 SMT除非明确声明,否则这个范围中的滤波器的工作温度范围介于 -25°C 和 85°C 之间。
立创商城:
NFW31SP106X1E4L
艾睿:
EMI Filter LC-Circuit 30dB 0.2A 25VDC Flat Style SMD T/R
富昌:
NFW Series 1206 200 mA 25 V 10 MHz Chip EMIFIL LC Combined Type EMI Filter
Chip1Stop:
EMI Filter LC-Circuit 30dB 0.2A 25VDC Flat Style SMD Plastic T/R
TME:

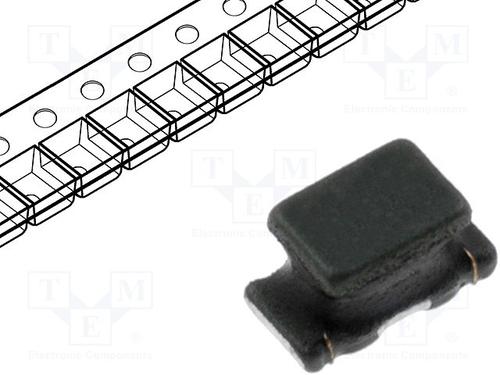

Filter: anti-interference; Mounting: SMD; 1206; 200mA; 25VDC; 10MHz
Verical:
EMI Filter LC-Circuit 30dB 0.2A 25VDC Flat Style SMD T/R
Newark:
# MURATA NFW31SP106X1E4L Power Line Filter, 25 V, 200 mA, EMI, RFI, SMD
儒卓力:
**NFW31S 10MHz 200mA -40/+85°C **
Win Source:
LC Pi EMI Filter 3rd Order Low Pass 1 Channel 200mA 1206 3216 Metric, 3 PC Pad
额定电压DC 25 V
额定电流 200 mA
通道数 1
屏蔽 No
额定电流Max 0.2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 25 VDC
额定电压 25 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.8 mm
封装公制 3216
封装 1206
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通信与网络, 通用, Sensing & Instrumentation, 传感与仪器, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NFW31SP106X1E4L muRata 村田 | 当前型号 | 当前型号 |
NFW31SP106X1E4 村田 | 功能相似 | NFW31SP106X1E4L和NFW31SP106X1E4的区别 |
NFW31SP106X1E4B 村田 | 功能相似 | NFW31SP106X1E4L和NFW31SP106X1E4B的区别 |
NFW31SP106X1E4D 村田 | 功能相似 | NFW31SP106X1E4L和NFW31SP106X1E4D的区别 |
