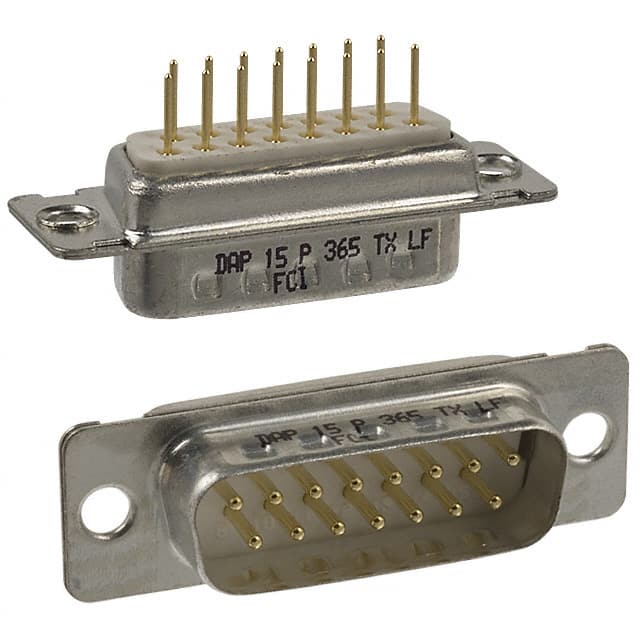

DAP15P365TXLF

Conn D-Subminiature PIN 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port

15 位 D-Sub 插头，公引脚 连接器

得捷:
CONN D-SUB PLUG 15POS VERT SLDR

艾睿:
Using the DAP15P365TXLF DVI connector from FCI is fast and easy for communicating between serial connections in your circuit. This 2-row connector has a single port. It has a maximum voltage rating of 1000 VAC. Its pitch is 2.74 mm. It has a straight body orientation. This device has a maximum current rating of 7.5 A/contact. DAP15P365TXLF is housed in thermoplastic. This DVI connector has an operating temperature of -55 to 125 °C. Its 15 terminals use the solder termination method. This product is 38.76 mm long, 10.85 mm tall and 12.17 mm deep.
