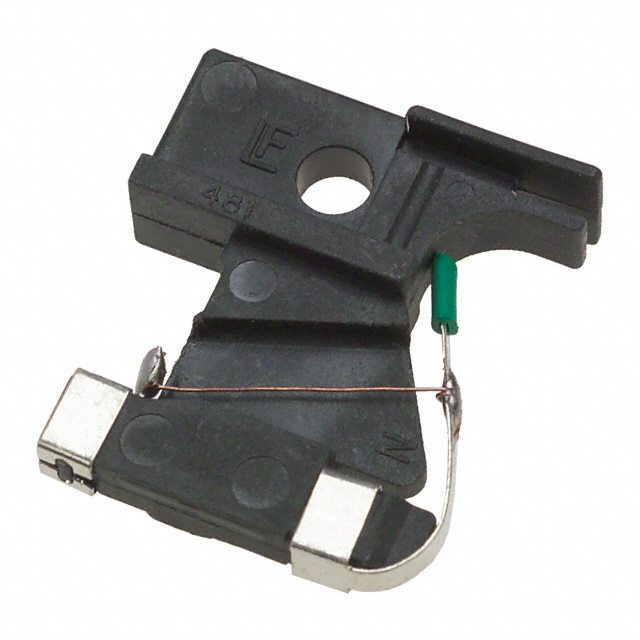

481 系列 快熔型 125 V 5 A 22.9 x 19.6 mm 报警指示 保险丝
Color coded by amperage. Blown fuse indicating flag can activate alarm circuit. Multiple panel mounting in limited space. 0.585" × 0.775" UL recognized at 60 VDC.
* For Telecommunications Equipment and Similar Applications
* Available from 0.18 through 20 Amp
立创商城:
0481005.H
艾睿:
Fuse Alarm Indicating 5A 125V Holder 17.8 X 8 X 19.6mm Polyphenylene Sulfide Bulk CSA
Allied Electronics:
Fuse; Indicating/Telecom; 5A; Supplemental; Dims 0.9x0.23x0.77"; Plastic-Black; Blade
Jameco:
Alarm Fuse 5A 125V Fast Acting
Chip1Stop:
Fuse Alarm Indicating 5A 125V Holder 17.8 X 8 X 19.6mm Polyphenylene Sulfide Bulk
Newark:
# LITTELFUSE 0481005.H Fuse, Alarm / Indicating, 481 Series, 5 A, 125 VAC, 125 VDC, Fast Acting, LED / Audio
额定电压DC 125 V
额定电压AC 125 V
额定电流 5 A
易燃性等级 UL 94 V-0
电阻 0.0285 Ω
电阻DC） 0.0285 Ω
工作温度Max 90 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Quick Connect, Snap-In
封装 Alarm Indicator
长度 22.9 mm
宽度 19.6 mm
高度 8 mm
封装 Alarm Indicator
颜色 Green
工作温度 -55℃ ~ 90℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
