HMC451

ANALOG DEVICES  HMC451  芯片, 射频放大器, 18DB, 20GHZ, 5V, 压铸

Product Details

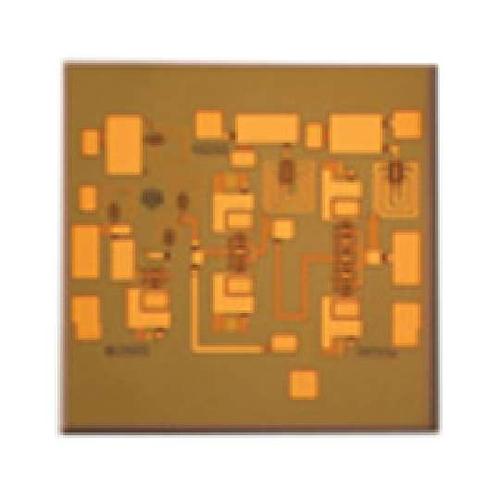

The is a general purpose GaAs PHEMT MMIC Medium Power Amplifier which operates between 5 and 20 GHz. The amplifier provides 22 dB of gain, +22 dBm of saturated power and 24% PAE from a +5V supply. Consistent gain and output power across the operating band make it possible to use a common driver/LO amplifier approach in multiple radio bands.

The HMC451 amplifier can easily be integrated into Multi-Chip-Modules MCMs due to its small 1.82mm² size, single supply operation and DC blocked I/Os. All data is tested with the chip in a 50 Ohm test fixture connected via 0.025mm 1 mil diameter wire bonds of minimal length <0.31mm <12 mils.

**Applications**

.

Point-to-Point Radios

.

Point-to-Multi-Point Radios & VSAT

.

Test Equipment & Sensors

.

LO Driver for HMC Mixers

.

Military & Space

### Features and Benefits

.

Gain: 22 dB

.

Saturated Output Power:

+22 dBm @ 24% PAE

.

Output IP3: +30 dBm

.

Single Positive Supply:

+5V @ 127 mA

.

50 Ohm Matched Input/Output

.

Small Size: 1.35 x 1.35 x 0.1 mm
