HMC245AQS16

RF 开关 IC DC-3.5 GHz SP3T Non-Reflective SMT

Product Details

The & HMC245AQS16E are low cost non-reflective SP3T switches in 16-lead QSOP surface mount packages. Covering DC to 3.5 GHz, the switch offers 30 to 40 dB isolation and a low insertion loss of 0.7 dB. A 2:3 TTL/CMOS compatible decoder is integrated on the switch requiring only 2 control lines and a single +5V bias to select each path, replacing 6 control lines normally required by GaAs SP3T switches.

**Applications**

.

Basestation Infrastructure

.

CATV / DBS

.

Wireless Local Loop

.

Test Equipment

### Features and Benefits

.

Low Insertion Loss: 0.7 dB @ 2.0 GHz

.

Non-Reflective Design

.

Integrated 2:3 TTL Decoder

.

“All Off” Isolation State

.

Single Positive Suppy: Vdd = +5V

.

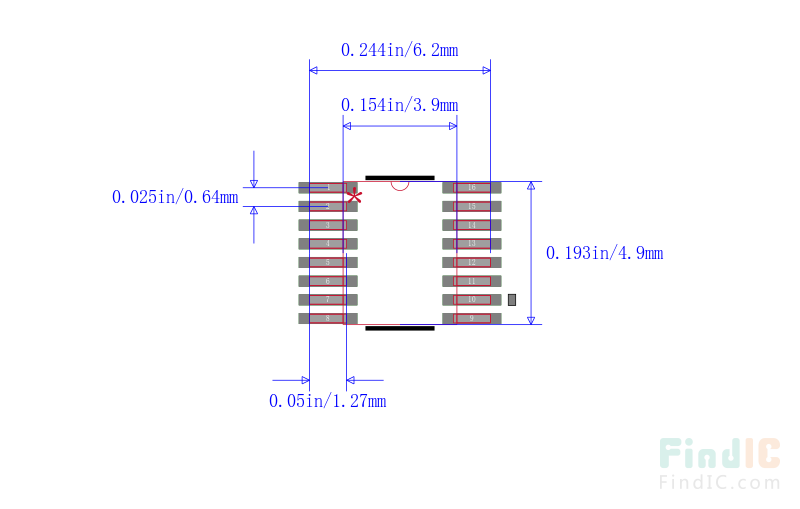

16 Lead QSOP SMT Package
