ANALOG DEVICES HMC241ALP3ETR 芯片, 射频开关, SP4T, DC-4GHZ, QFN-16
The is a general purpose non-reflective GaAs MMIC SP4T Switch covering DC to 4GHz, this switch offers high isolation and has a low insertion loss of 0.7dB at 2GHz. The switch offers a single positive bias and true TTL/CMOS compatibility. A 2:4 decoder is integrated on the switch requiring only 2 control lines and a positive bias to select each path, replacing 4 to 8 control lines normally required by GaAs SP4T switches.
- .
- 43dB at 2GHz High isolation
- .
- 0.7dB at 2GHz Low insertion loss
- .
- Integrated 2:4 TTL decoder
频率 4000 MHz
电源电压DC 4.50V min
供电电流 2.5 mA
针脚数 16
测试频率 4 GHz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 5 V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

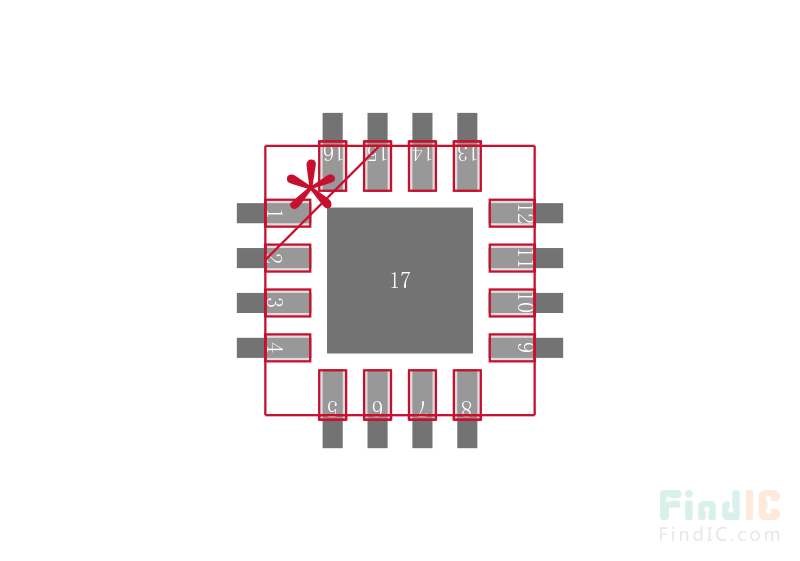

引脚数 16

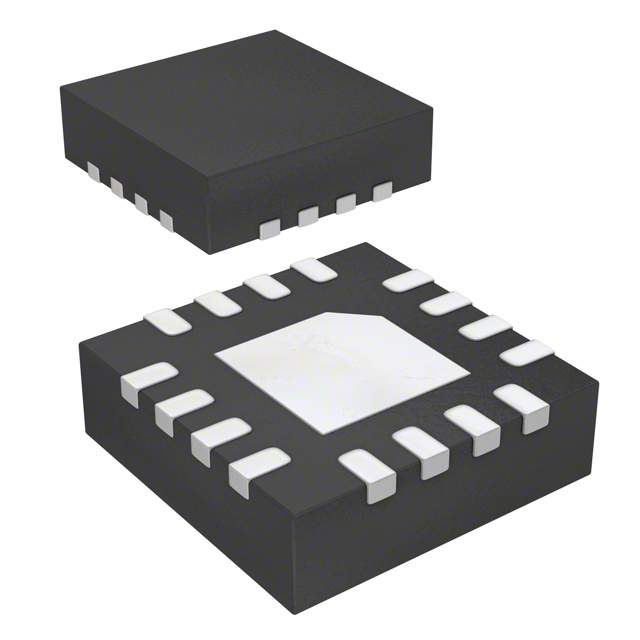

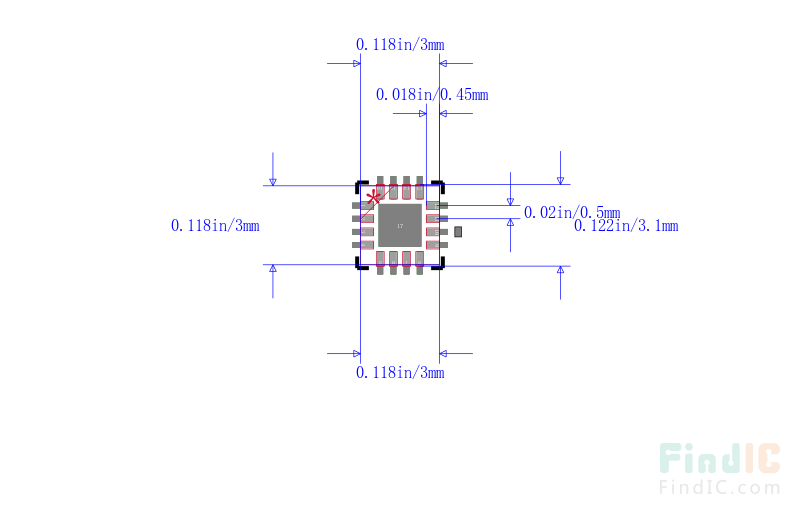

封装 QFN-16
高度 0.95 mm
封装 QFN-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 测试与测量, 射频通信, Test & Measurement, Wireless, 无线, RF Communications
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
HMC241ALP3ETR ADI 亚德诺 | 当前型号 | 当前型号 |
HMC241ALP3E 亚德诺 | 完全替代 | HMC241ALP3ETR和HMC241ALP3E的区别 |
