HMC589AST89ETR

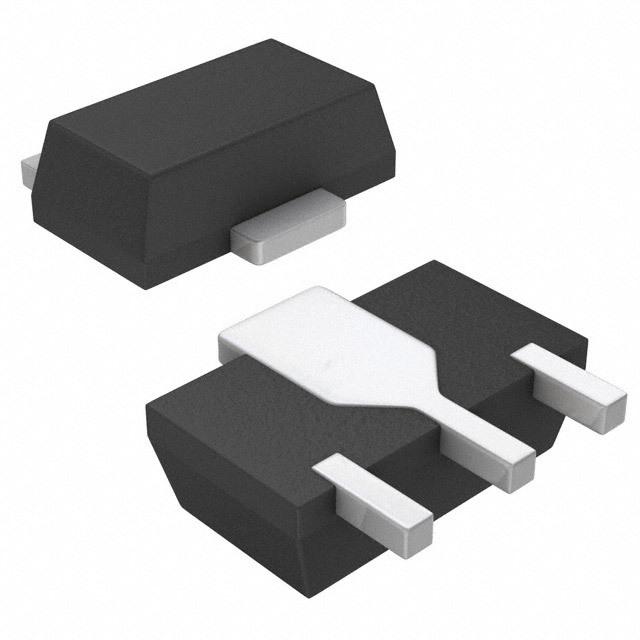

ANALOG DEVICES  HMC589AST89ETR  芯片, 射频放大器, DC-4GHZ, 21DB, SOT-89E-4 新

Product Details

The HMC589AST89E is an InGaP HBT Gain Block MMIC SMT amplifier covering DC to 4 GHz and packaged in an industry standard SOT89E. The amplifier can be used as a cascadable 50 Ohm RF or IF gain stage as well as a LO or PA driver with up to +19 dBm P1dB output power for cellular/3G, FWA, CATV, microwave radio and test equipment applications. The HMC589AST89E offers 20 dB gain and +33 dBm output IP3 at 1 GHz while requiring only 82 mA from a single positive supply. The HMC589AST89E InGaP HBT gain block offers excellent output power and gain stability over temperature.

Applications

.

Cellular / PCS / 3G

.

Fixed Wireless & WLAN

.

CATV, Cable Modem & DBS

.

Microwave Radio & Test Equipment

.

IF & RF Applications

### Features and Benefits

.

P1dB Output Power: +21 dBm

.

Gain: 21 dB

.

Output IP3: +33 dBm

.

Single Supply: +5V

.

Industry Standard SOT89E Package
