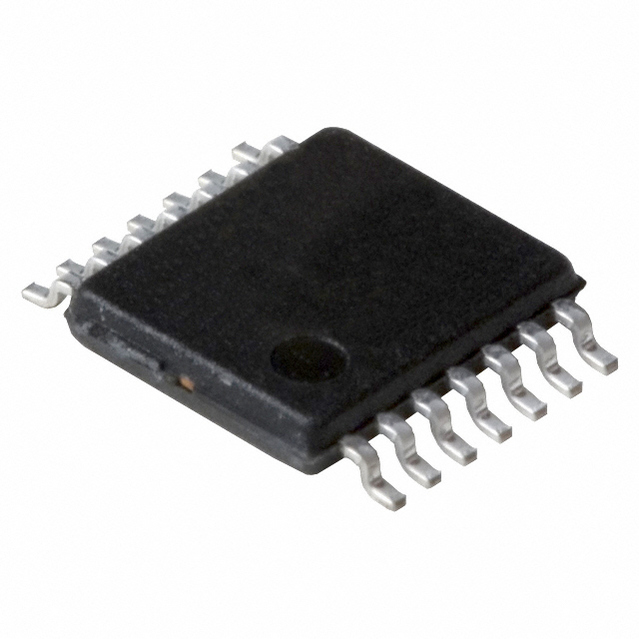

NXP 74HC14PW,112 逻辑芯片, 六路非门, 施密特触发, TSSOP-14
inverting Schmitt triggers from Semiconductors are designed specifically to clean up noisy analog signals and convert them into more manageable digital signals. With a Schmitt trigger output, this is power management at its best. This inverting Schmitt trigger has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product comes packaged in bulk, so the parts will be stored loosely. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V min
输出电流 5.2 mA
电路数 6
针脚数 14
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
长度 5.1 mm
宽度 4.5 mm
高度 0.95 mm
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
74HC14PW,112 NXP 恩智浦 | 当前型号 | 当前型号 |
74HC14PW,118 恩智浦 | 类似代替 | 74HC14PW,112和74HC14PW,118的区别 |
SN74HC14QPWRQ1 德州仪器 | 功能相似 | 74HC14PW,112和SN74HC14QPWRQ1的区别 |
MM74HC14MTCX 飞兆/仙童 | 功能相似 | 74HC14PW,112和MM74HC14MTCX的区别 |
