HCPL-3120-500E

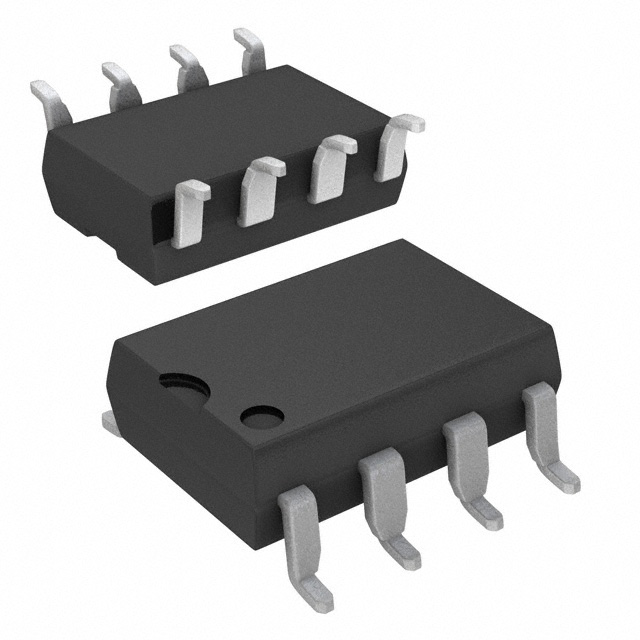

BROADCOM LIMITED  HCPL-3120-500E  光电耦合器, 晶体管, IGBT, 3.75KV, SM DIP-8

The is a 2A output current IGBT Gate Drive Optocoupler contains a GaAsP LED. The LED is optically coupled to an integrated circuit with a power output stage. It is ideally suited for driving power IGBTs and MOSFETs used in motor control inverted applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. This series can be used to drive a discrete power stage which drives the IGBT gate.

.

Eliminates need for negative gate drive

.

Undervoltage lock-out protection UVLO with hysteresis

.

500ns Maximum switching speeds

.

-40 to 100°C Industrial temperature range

It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD.
